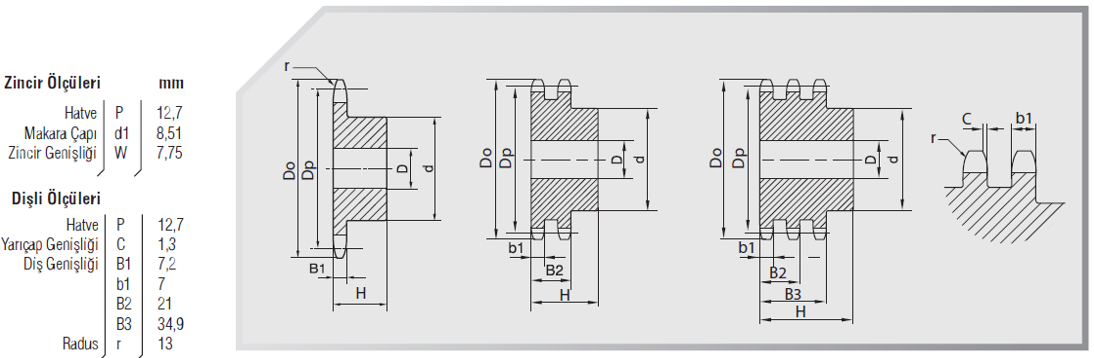

08 B Zincir Dişli Ölçüleri

Ürün Kodu	Diş Sayısı Z	Diş Üstü Do	Bölüm Dairesi	Tek Sıra d	Tek Sıra-D	Tek Sıra H	Çift Sıra d	Çift Sıra-D	Çift Sıra H	Üç Sıra d	Üç Sıra-D	Üç Sıra H
Ürün Kodu	Diş Sayısı Z	Diş Üstü Do	Bölüm Dairesi	Tek Sıra d	Tek Sıra-D	Tek Sıra H	Çift Sıra d	Çift Sıra-D	Çift Sıra H	Üç Sıra d	Üç Sıra-D	Üç Sıra H
08B - 1/2” x 5/16”	8	37.20	33.18	20	10	25	20	10	32	20	10	46
08B - 1/2” x 5/16”	9	41.00	37.13	24	10	25	24	10	32	24	12	46
08B - 1/2” x 5/16”	10	45.20	41.10	26	10	25	28	10	32	28	12	46
08B - 1/2” x 5/16”	11	48.70	45.07	29	10	25	32	12	35	32	14	50
08B - 1/2” x 5/16”	12	53.00	49.07	33	10	28	35	12	35	35	14	50
08B - 1/2” x 5/16”	13	57.40	53.06	37	10	28	38	12	35	38	14	50
08B - 1/2” x 5/16”	14	61.80	57.07	41	10	28	42	12	35	42	14	50
08B - 1/2” x 5/16”	15	65.50	61.09	45	10	28	46	12	35	46	14	50
08B - 1/2” x 5/16”	16	69.50	65.10	50	12	28	50	14	35	50	16	50
08B - 1/2” x 5/16”	17	73.60	69.11	52	12	28	54	14	35	54	16	50
08B - 1/2” x 5/16”	18	77.80	73.14	56	12	28	58	14	35	58	16	50
08B - 1/2” x 5/16”	19	81.70	77.16	60	12	28	62	14	35	62	16	50
08B - 1/2” x 5/16”	20	85.80	81.19	64	12	28	66	14	35	66	16	50
08B - 1/2” x 5/16”	21	89.70	85.22	68	12	28	70	16	40	70	20	55
08B - 1/2” x 5/16”	22	93.80	89.24	70	12	28	70	16	40	70	20	55
08B - 1/2” x 5/16”	23	98.20	93.27	70	14	28	70	16	40	70	20	55
08B - 1/2” x 5/16”	24	101.80	97.29	70	14	28	75	16	40	75	20	55
08B - 1/2” x 5/16”	25	105.80	101.33	70	14	28	80	16	40	80	20	55
08B - 1/2” x 5/16”	26	110.00	105.36	70	16	30	85	20	40	85	20	55
08B - 1/2” x 5/16”	27	114.00	109.40	70	16	30	85	20	40	85	20	55
08B - 1/2” x 5/16”	28	118.00	113.42	70	16	30	90	20	40	90	20	55
08B - 1/2” x 5/16”	29	122.00	117.46	80	16	30	95	20	40	95	20	55
08B - 1/2” x 5/16”	30	126.10	121.50	80	16	30	100	20	40	100	20	55
08B - 1/2” x 5/16”	31	130.20	125.54	90	16	30	100	20	40	110	20	55
08B - 1/2” x 5/16”	32	134.30	129.56	90	16	30	100	20	40	110	20	55
08B - 1/2” x 5/16”	33	138.40	133.60	90	16	30	100	20	40	110	20	55
08B - 1/2” x 5/16”	34	142.60	137.64	90	16	30	100	20	40	110	20	55
08B - 1/2” x 5/16”	35	146.70	141.68	90	16	30	100	20	40	110	20	55
08B - 1/2” x 5/16”	36	151.00	145.72	90	16	35	110	20	40	120	25	55
08B - 1/2” x 5/16”	37	154.60	149.76	90	16	35	110	20	40	120	25	55
08B - 1/2” x 5/16”	38	158.60	153.80	90	16	35	110	20	40	120	25	55
08B - 1/2” x 5/16”	39	162.70	157.83	90	16	35	110	20	40	120	25	55
08B - 1/2” x 5/16”	40	166.80	161.87	90	16	35	110	20	40	120	25	55
08B - 1/2” x 5/16”	41	171.40	165.91	90	20	40	110	20	50	120	25	60
08B - 1/2” x 5/16”	42	175.40	169.95	90	20	40	110	20	50	120	25	60
08B - 1/2” x 5/16”	43	179.70	173.99	90	20	40	110	20	50	120	25	60
08B - 1/2” x 5/16”	44	183.80	178.03	90	20	40	110	20	50	120	25	60
08B - 1/2” x 5/16”	45	188.00	182.07	90	20	40	110	20	50	120	25	60
08B - 1/2” x 5/16”	46	192.10	186.10	90	20	40	110	20	50	120	25	60
08B - 1/2” x 5/16”	47	196.20	190.14	90	20	40	110	20	50	120	25	60
08B - 1/2” x 5/16”	48	200.30	194.18	90	20	40	110	20	50	120	25	60
08B - 1/2” x 5/16”	49	204.30	198.22	90	20	40	110	20	50	120	25	60
08B - 1/2” x 5/16”	50	208.30	202.26	90	20	40	110	20	50	120	25	60
08B - 1/2” x 5/16”	51	212.10	206.30	90	20	40	110	25	50	120	25	60
08B - 1/2” x 5/16”	52	216.10	210.34	90	20	40	110	25	50	120	25	60
08B - 1/2” x 5/16”	53	220.20	214.37	90	20	40	110	25	50	120	25	60
08B - 1/2” x 5/16”	54	224.10	218.43	90	20	40	110	25	50	120	25	60
08B - 1/2” x 5/16”	55	228.10	222.46	90	20	40	110	25	50	120	25	60
08B - 1/2” x 5/16”	56	232.20	226.50	90	20	40	110	25	50	120	25	60
08B - 1/2” x 5/16”	57	236.40	230.54	90	20	40	110	25	50	120	25	60
08B - 1/2” x 5/16”	58	240.50	234.58	90	20	40	110	25	50	120	25	60
08B - 1/2” x 5/16”	59	244.50	238.62	90	20	40	110	25	50	120	25	60
08B - 1/2” x 5/16”	60	248.60	242.66	90	20	40	110	25	50	120	25	60
08B - 1/2” x 5/16”	62	256.90	250.75	90	25	40	110	25	50	120	25	60
08B - 1/2” x 5/16”	64	265.10	258.82	90	25	40	110	25	50	120	25	60
08B - 1/2” x 5/16”	65	269.00	262.86	90	25	40	110	25	50	120	25	60
08B - 1/2” x 5/16”	66	273.00	266.90	90	25	40	110	25	50	120	25	60
08B - 1/2” x 5/16”	68	281.00	274.99	90	25	40	110	25	55	120	25	60
08B - 1/2” x 5/16”	70	289.00	283.07	90	25	40	110	25	55	120	25	60
08B - 1/2” x 5/16”	72	297.20	291.16	90	25	40	110	25	55	120	25	60
08B - 1/2” x 5/16”	75	309.20	303.27	90	25	40	110	25	55	120	25	60
08B - 1/2” x 5/16”	76	313.30	307.33	90	25	40	110	25	55	120	25	60
08B - 1/2” x 5/16”	78	321.40	315.40	90	25	40	110	25	55	120	25	60
08B - 1/2” x 5/16”	80	329.40	323.48	90	25	40	110	25	55	120	25	60
08B - 1/2” x 5/16”	85	349.00	343.69	90	25	40	110	25	55	120	25	60
08B - 1/2” x 5/16”	90	369.90	363.90	90	25	40	110	25	55	120	25	60
08B - 1/2” x 5/16”	95	390.10	384.11	90	25	40	110	25	55	120	25	60
08B - 1/2” x 5/16”	100	410.30	404.31	90	25	40	110	25	55	120	25	60
08B - 1/2” x 5/16”	110	450.70	444.74	90	25	40	110	25	55	120	25	60
08B - 1/2” x 5/16”	114	466.90	460.90	90	25	40	110	25	55	120	25	60
08B - 1/2” x 5/16”	120	491.20	485.16	90	25	40	110	25	55	120	25	60
08B - 1/2” x 5/16”	125	511.30	505.37	90	25	40	110	25	55	120	25	60

08 B Zincir Dişli Ölçüleri
