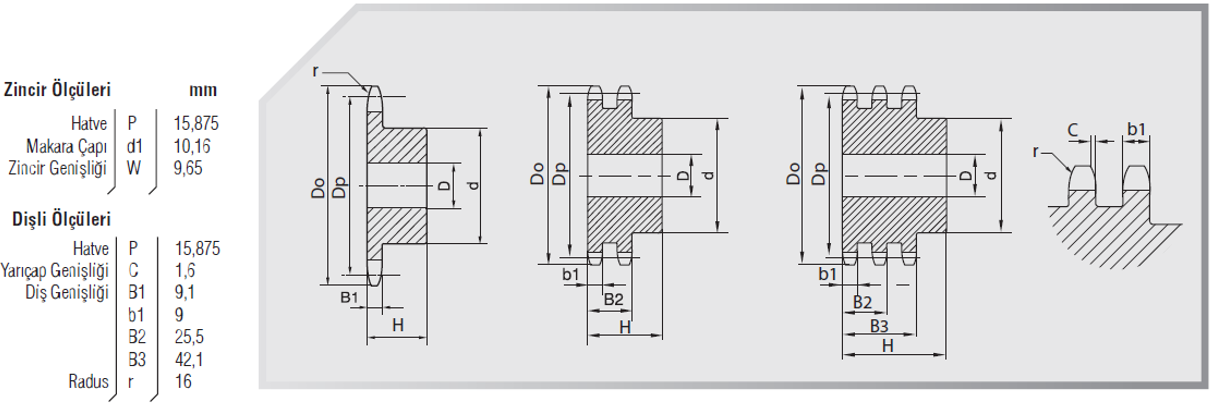

10 B Zincir Dişli Ölçüleri

Ürün Kodu	Diş Sayısı Z	Diş Üstü Do	Bölüm Dairesi	Tek Sıra d	Tek Sıra-D	Tek Sıra H	Çift Sıra d	Çift Sıra-D	Çift Sıra H	Üç Sıra d	Üç Sıra-D	Üç Sıra H
Ürün Kodu	Diş Sayısı Z	Diş Üstü Do	Bölüm Dairesi	Tek Sıra d	Tek Sıra-D	Tek Sıra H	Çift Sıra d	Çift Sıra-D	Çift Sıra H	Üç Sıra d	Üç Sıra-D	Üç Sıra H
10B - 5/8” x 3/8”	8	47.00	41.48	25	10	25	25	12	40	25	12	55
10B - 5/8” x 3/8”	9	52.60	46.42	30	10	25	30	12	40	30	12	55
10B - 5/8” x 3/8”	10	57.50	51.37	35	10	25	35	12	40	35	16	55
10B - 5/8” x 3/8”	11	63.00	56.34	37	12	30	39	14	40	39	16	55
10B - 5/8” x 3/8”	12	68.00	61.34	42	12	30	44	14	40	44	16	55
10B - 5/8” x 3/8”	13	73.00	66.32	47	12	30	49	14	40	49	16	55
10B - 5/8” x 3/8”	14	78.00	71.34	52	12	30	54	14	40	54	16	55
10B - 5/8” x 3/8”	15	83.00	76.36	57	12	30	59	14	40	59	16	55
10B - 5/8” x 3/8”	16	88.00	81.37	60	12	30	64	16	45	64	16	60
10B - 5/8” x 3/8”	17	93.00	86.39	60	12	30	69	16	45	69	16	60
10B - 5/8” x 3/8”	18	98.30	91.42	70	14	30	74	16	45	74	16	60
10B - 5/8” x 3/8”	19	103.30	96.45	70	14	30	79	16	45	79	16	60
10B - 5/8” x 3/8”	20	108.40	101.49	75	14	30	84	16	45	84	16	60
10B - 5/8” x 3/8”	21	113.40	106.52	75	16	30	85	16	45	85	20	60
10B - 5/8” x 3/8”	22	118.00	111.55	80	16	30	90	16	45	90	20	60
10B - 5/8” x 3/8”	23	123.40	116.58	80	16	30	95	16	45	95	20	60
10B - 5/8” x 3/8”	24	128.30	121.62	80	16	30	100	16	45	100	20	60
10B - 5/8” x 3/8”	25	134.00	126.66	80	16	30	105	16	45	105	20	60
10B - 5/8” x 3/8”	26	139.00	131.70	85	20	35	110	20	45	110	20	60
10B - 5/8” x 3/8”	27	144.00	136.75	85	20	35	110	20	45	110	20	60
10B - 5/8” x 3/8”	28	148.70	141.78	90	20	35	115	20	45	115	20	60
10B - 5/8” x 3/8”	29	153.80	146.83	90	20	35	115	20	45	115	20	60
10B - 5/8” x 3/8”	30	158.80	151.87	90	20	35	120	20	45	120	20	60
10B - 5/8” x 3/8”	31	163.90	156.92	95	20	35	120	20	45	120	20	60
10B - 5/8” x 3/8”	32	168.90	161.95	95	20	35	120	20	45	120	20	60
10B - 5/8” x 3/8”	33	174.50	167.00	95	20	35	120	20	45	120	20	60
10B - 5/8” x 3/8”	34	179.00	172.05	95	20	35	120	20	45	120	20	60
10B - 5/8” x 3/8”	35	184.10	177.10	95	20	35	120	20	45	120	20	60
10B - 5/8” x 3/8”	36	189.10	182.15	100	20	35	120	20	45	120	25	60
10B - 5/8” x 3/8”	37	194.20	187.20	100	20	35	120	20	45	120	25	60
10B - 5/8” x 3/8”	38	199.20	192.24	100	20	35	120	20	45	120	25	60
10B - 5/8” x 3/8”	39	204.20	197.29	100	20	35	120	20	45	120	25	60
10B - 5/8” x 3/8”	40	209.30	202.34	100	20	35	120	20	45	120	25	60
10B - 5/8” x 3/8”	41	214.80	207.39	100	20	40	120	20	50	130	25	60
10B - 5/8” x 3/8”	42	219.90	212.44	100	20	40	120	20	50	130	25	60
10B - 5/8” x 3/8”	43	224.90	217.49	100	20	40	120	20	50	130	25	60
10B - 5/8” x 3/8”	44	230.00	222.53	100	20	40	120	20	50	130	25	60
10B - 5/8” x 3/8”	45	235.00	227.58	100	20	40	120	20	50	130	25	60
10B - 5/8” x 3/8”	46	240.10	232.63	100	20	40	120	25	50	130	25	60
10B - 5/8” x 3/8”	47	245.10	237.68	100	20	40	120	25	50	130	25	60
10B - 5/8” x 3/8”	48	250.20	242.73	100	20	40	120	25	50	130	25	60
10B - 5/8” x 3/8”	49	255.20	247.78	100	20	40	120	25	50	130	25	60
10B - 5/8” x 3/8”	50	260.30	252.82	100	20	40	120	25	50	130	25	60
10B - 5/8” x 3/8”	51	265.30	257.87	100	20	40	120	25	50	130	25	60
10B - 5/8” x 3/8”	52	270.40	262.92	100	20	40	120	25	50	130	25	60
10B - 5/8” x 3/8”	53	275.40	267.97	100	20	40	120	25	50	130	25	60
10B - 5/8” x 3/8”	54	280.50	273.03	100	20	40	120	25	50	130	25	60
10B - 5/8” x 3/8”	55	285.50	278.08	100	20	40	120	25	50	130	25	60
10B - 5/8” x 3/8”	56	290.60	283.13	100	25	40	120	25	50	130	25	60
10B - 5/8” x 3/8”	57	296.00	288.18	100	25	40	120	25	50	130	25	60
10B - 5/8” x 3/8”	58	300.70	293.23	100	25	43	120	25	57	130	25	64
10B - 5/8” x 3/8”	59	305.70	298.27	100	25	43	120	25	57	130	25	64
10B - 5/8” x 3/8”	60	310.80	303.32	100	25	43	120	25	57	130	25	64
10B - 5/8” x 3/8”	62	321.40	313.43	100	25	43	120	25	57	130	30	64
10B - 5/8” x 3/8”	64	331.50	323.53	100	25	43	120	25	57	130	30	67
10B - 5/8” x 3/8”	65	336.50	328.58	100	25	43	120	25	57	130	30	67
10B - 5/8” x 3/8”	66	341.60	333.63	100	25	43	120	25	57	130	30	67
10B - 5/8” x 3/8”	68	351.70	343.74	100	25	43	120	25	57	130	30	67
10B - 5/8” x 3/8”	70	361.80	353.84	100	25	43	120	25	57	130	30	67
10B - 5/8” x 3/8”	72	371.90	363.95	100	25	43	120	25	57	130	30	67
10B - 5/8” x 3/8”	75	387.10	379.09	100	25	43	120	25	57	130	30	67
10B - 5/8” x 3/8”	76	392.10	384.16	100	25	43	120	25	57	130	30	67
10B - 5/8” x 3/8”	78	402.20	394.25	100	25	43	120	25	57	130	30	67
10B - 5/8” x 3/8”	80	412.30	404.35	100	25	43	120	25	57	130	30	67
10B - 5/8” x 3/8”	85	437.60	429.62	100	30	50	120	30	57	130	30	67
10B - 5/8” x 3/8”	90	462.80	454.88	100	30	50	120	30	57	130	30	67
10B - 5/8” x 3/8”	95	488.50	480.14	100	30	50	120	30	57	130	30	67
10B - 5/8” x 3/8”	100	513.40	505.40	100	30	50	120	30	57	130	30	67
10B - 5/8” x 3/8”	110	563.90	555.92	100	30	50	120	30	57	130	30	67
10B - 5/8” x 3/8”	114	584.10	576.13	100	30	50	120	30	57	130	30	67
10B - 5/8” x 3/8”	120	614.80	606.44	100	30	50	120	30	57	130	30	67
10B - 5/8” x 3/8”	125	639.70	631.71	100	30	50	120	30	57	130	30	67

10 B Zincir Dişli Ölçüleri
