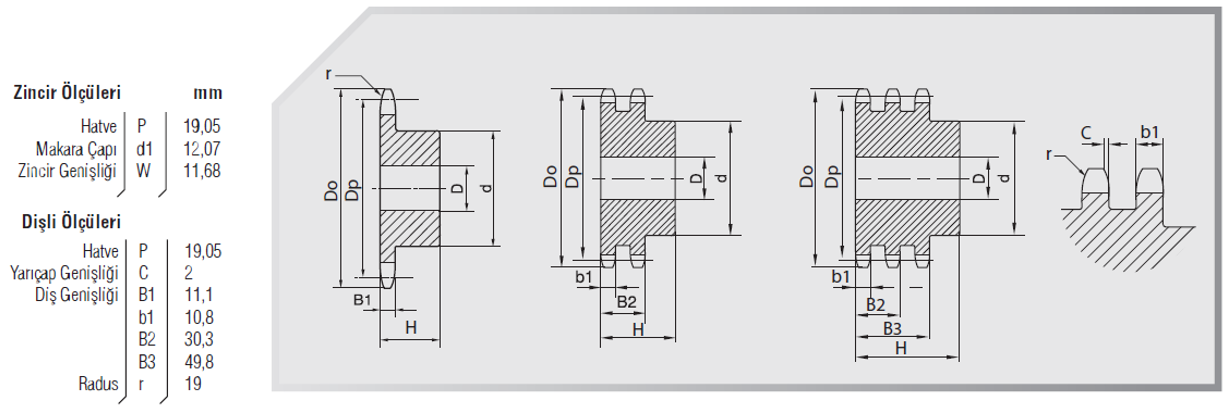

12 B Zincir Dişli Ölçüleri
| Ürün Kodu | Diş Sayısı Z | Diş Üstü Do | Bölüm Dairesi | Tek Sıra d | Tek Sıra-D | Tek Sıra H | Çift Sıra d | Çift Sıra-D | Çift Sıra H | Üç Sıra d | Üç Sıra-D | Üç Sıra H |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Ürün Kodu | Diş Sayısı Z | Diş Üstü Do | Bölüm Dairesi | Tek Sıra d | Tek Sıra-D | Tek Sıra H | Çift Sıra d | Çift Sıra-D | Çift Sıra H | Üç Sıra d | Üç Sıra-D | Üç Sıra H |
| 12B - 3/4” x 7/16” | 8 | 57.60 | 49.78 | 31 | 12 | 30 | 31 | 12 | 45 | 31 | 16 | 65 |
| 12B - 3/4” x 7/16” | 9 | 62.00 | 55.70 | 37 | 12 | 30 | 37 | 12 | 45 | 37 | 16 | 65 |
| 12B - 3/4” x 7/16” | 10 | 69.00 | 61.64 | 42 | 12 | 30 | 42 | 12 | 45 | 42 | 16 | 65 |
| 12B - 3/4” x 7/16” | 11 | 75.00 | 67.61 | 46 | 14 | 35 | 47 | 16 | 50 | 47 | 20 | 70 |
| 12B - 3/4” x 7/16” | 12 | 81.50 | 73.60 | 52 | 14 | 35 | 53 | 16 | 50 | 53 | 20 | 70 |
| 12B - 3/4” x 7/16” | 13 | 87.50 | 79.59 | 58 | 14 | 35 | 59 | 16 | 50 | 59 | 20 | 70 |
| 12B - 3/4” x 7/16” | 14 | 93.60 | 85.61 | 64 | 14 | 35 | 65 | 16 | 50 | 65 | 20 | 70 |
| 12B - 3/4” x 7/16” | 15 | 99.80 | 91.63 | 70 | 14 | 35 | 71 | 16 | 50 | 71 | 20 | 70 |
| 12B - 3/4” x 7/16” | 16 | 105.50 | 97.65 | 75 | 16 | 35 | 77 | 20 | 50 | 77 | 20 | 70 |
| 12B - 3/4” x 7/16” | 17 | 111.50 | 103.67 | 80 | 16 | 35 | 83 | 20 | 50 | 83 | 20 | 70 |
| 12B - 3/4” x 7/16” | 18 | 118.00 | 109.71 | 80 | 16 | 35 | 89 | 20 | 50 | 89 | 20 | 70 |
| 12B - 3/4” x 7/16” | 19 | 124.20 | 115.75 | 80 | 16 | 35 | 95 | 20 | 50 | 95 | 20 | 70 |
| 12B - 3/4” x 7/16” | 20 | 129.70 | 121.78 | 80 | 16 | 35 | 100 | 20 | 50 | 100 | 20 | 70 |
| 12B - 3/4” x 7/16” | 21 | 136.00 | 127.82 | 90 | 20 | 40 | 100 | 20 | 50 | 100 | 20 | 70 |
| 12B - 3/4” x 7/16” | 22 | 141.80 | 133.86 | 90 | 20 | 40 | 100 | 20 | 50 | 100 | 20 | 70 |
| 12B - 3/4” x 7/16” | 23 | 149.00 | 139.90 | 90 | 20 | 40 | 110 | 20 | 50 | 110 | 20 | 70 |
| 12B - 3/4” x 7/16” | 24 | 153.90 | 145.94 | 90 | 20 | 40 | 110 | 20 | 50 | 110 | 20 | 70 |
| 12B - 3/4” x 7/16” | 25 | 160.00 | 152.00 | 90 | 20 | 40 | 120 | 20 | 50 | 120 | 20 | 70 |
| 12B - 3/4” x 7/16” | 26 | 165.90 | 158.04 | 95 | 20 | 40 | 120 | 20 | 50 | 120 | 20 | 70 |
| 12B - 3/4” x 7/16” | 27 | 172.30 | 164.09 | 95 | 20 | 40 | 120 | 20 | 50 | 120 | 20 | 70 |
| 12B - 3/4” x 7/16” | 28 | 178.00 | 170.13 | 95 | 20 | 40 | 120 | 20 | 50 | 120 | 20 | 70 |
| 12B - 3/4” x 7/16” | 29 | 184.10 | 176.19 | 95 | 20 | 40 | 120 | 20 | 50 | 120 | 20 | 70 |
| 12B - 3/4” x 7/16” | 30 | 190.50 | 182.25 | 95 | 20 | 40 | 120 | 20 | 50 | 120 | 20 | 70 |
| 12B - 3/4” x 7/16” | 31 | 196.30 | 188.31 | 100 | 20 | 40 | 130 | 20 | 50 | 130 | 25 | 70 |
| 12B - 3/4” x 7/16” | 32 | 203.30 | 194.35 | 100 | 20 | 40 | 130 | 20 | 50 | 130 | 25 | 70 |
| 12B - 3/4” x 7/16” | 33 | 209.30 | 200.40 | 100 | 20 | 40 | 130 | 20 | 50 | 130 | 25 | 70 |
| 12B - 3/4” x 7/16” | 34 | 214.60 | 206.46 | 100 | 20 | 40 | 130 | 20 | 50 | 130 | 25 | 70 |
| 12B - 3/4” x 7/16” | 35 | 221.00 | 212.52 | 100 | 20 | 40 | 130 | 20 | 50 | 130 | 25 | 70 |
| 12B - 3/4” x 7/16” | 36 | 226.80 | 218.58 | 100 | 20 | 40 | 130 | 25 | 50 | 130 | 25 | 70 |
| 12B - 3/4” x 7/16” | 37 | 232.90 | 224.64 | 100 | 20 | 40 | 130 | 25 | 50 | 130 | 25 | 70 |
| 12B - 3/4” x 7/16” | 38 | 239.00 | 230.69 | 100 | 20 | 40 | 130 | 25 | 50 | 130 | 25 | 70 |
| 12B - 3/4” x 7/16” | 39 | 245.10 | 236.75 | 100 | 20 | 40 | 130 | 25 | 50 | 130 | 25 | 70 |
| 12B - 3/4” x 7/16” | 40 | 251.30 | 242.81 | 100 | 20 | 40 | 130 | 25 | 50 | 130 | 25 | 70 |
| 12B - 3/4” x 7/16” | 41 | 257.30 | 248.87 | 110 | 25 | 56 | 136 | 25 | 62 | 140 | 25 | 70 |
| 12B - 3/4” x 7/16” | 42 | 264.50 | 254.93 | 110 | 25 | 56 | 136 | 25 | 62 | 140 | 25 | 70 |
| 12B - 3/4” x 7/16” | 43 | 270.50 | 260.98 | 110 | 25 | 56 | 136 | 25 | 62 | 140 | 25 | 70 |
| 12B - 3/4” x 7/16” | 44 | 276.50 | 267.03 | 110 | 25 | 56 | 136 | 25 | 62 | 140 | 25 | 70 |
| 12B - 3/4” x 7/16” | 45 | 282.50 | 273.10 | 110 | 25 | 56 | 136 | 25 | 62 | 140 | 25 | 70 |
| 12B - 3/4” x 7/16” | 46 | 287.90 | 279.16 | 110 | 25 | 56 | 136 | 25 | 62 | 140 | 25 | 70 |
| 12B - 3/4” x 7/16” | 47 | 294.00 | 285.21 | 110 | 25 | 56 | 136 | 25 | 62 | 140 | 25 | 70 |
| 12B - 3/4” x 7/16” | 48 | 300.10 | 291.27 | 110 | 25 | 56 | 136 | 25 | 62 | 140 | 25 | 70 |
| 12B - 3/4” x 7/16” | 49 | 306.20 | 297.33 | 110 | 25 | 56 | 136 | 25 | 62 | 140 | 25 | 70 |
| 12B - 3/4” x 7/16” | 50 | 312.30 | 303.39 | 110 | 25 | 56 | 136 | 25 | 62 | 140 | 25 | 70 |
| 12B - 3/4” x 7/16” | 51 | 318.40 | 309.45 | 110 | 25 | 56 | 136 | 25 | 62 | 140 | 25 | 70 |
| 12B - 3/4” x 7/16” | 52 | 324.50 | 315.50 | 110 | 25 | 56 | 136 | 25 | 62 | 140 | 25 | 70 |
| 12B - 3/4” x 7/16” | 53 | 330.50 | 321.56 | 110 | 25 | 56 | 136 | 25 | 62 | 140 | 25 | 70 |
| 12B - 3/4” x 7/16” | 54 | 336.60 | 327.64 | 110 | 25 | 56 | 136 | 25 | 62 | 140 | 25 | 70 |
| 12B - 3/4” x 7/16” | 55 | 342.70 | 333.70 | 110 | 25 | 56 | 136 | 25 | 62 | 140 | 25 | 70 |
| 12B - 3/4” x 7/16” | 56 | 348.70 | 339.75 | 110 | 25 | 56 | 136 | 25 | 62 | 140 | 30 | 70 |
| 12B - 3/4” x 7/16” | 57 | 355.40 | 345.81 | 110 | 25 | 56 | 136 | 25 | 62 | 140 | 30 | 70 |
| 12B - 3/4” x 7/16” | 58 | 361.50 | 351.87 | 110 | 25 | 56 | 136 | 25 | 62 | 140 | 30 | 70 |
| 12B - 3/4” x 7/16” | 59 | 367.50 | 357.93 | 110 | 25 | 56 | 136 | 25 | 62 | 140 | 30 | 70 |
| 12B - 3/4” x 7/16” | 60 | 373.00 | 363.99 | 110 | 25 | 56 | 136 | 25 | 62 | 140 | 30 | 70 |
| 12B - 3/4” x 7/16” | 62 | 385.10 | 376.12 | 110 | 25 | 56 | 136 | 30 | 62 | 140 | 30 | 70 |
| 12B - 3/4” x 7/16” | 64 | 397.20 | 388.24 | 110 | 25 | 56 | 140 | 30 | 62 | 140 | 30 | 70 |
| 12B - 3/4” x 7/16” | 65 | 403.20 | 394.29 | 110 | 25 | 56 | 140 | 30 | 62 | 140 | 30 | 70 |
| 12B - 3/4” x 7/16” | 66 | 409.20 | 400.35 | 110 | 30 | 56 | 140 | 30 | 62 | 140 | 30 | 70 |
| 12B - 3/4” x 7/16” | 68 | 421.40 | 412.49 | 110 | 30 | 56 | 140 | 30 | 62 | 140 | 30 | 70 |
| 12B - 3/4” x 7/16” | 70 | 433.60 | 424.60 | 110 | 30 | 56 | 140 | 30 | 62 | 140 | 30 | 70 |
| 12B - 3/4” x 7/16” | 72 | 447.00 | 436.74 | 110 | 30 | 56 | 140 | 30 | 62 | 140 | 30 | 70 |
| 12B - 3/4” x 7/16” | 75 | 463.90 | 454.91 | 110 | 30 | 56 | 140 | 30 | 62 | 140 | 30 | 70 |
| 12B - 3/4” x 7/16” | 76 | 469.90 | 460.99 | 110 | 30 | 56 | 140 | 30 | 62 | 140 | 30 | 70 |
| 12B - 3/4” x 7/16” | 78 | 482.10 | 473.10 | 110 | 30 | 56 | 140 | 30 | 62 | 140 | 30 | 70 |
| 12B - 3/4” x 7/16” | 80 | 494.20 | 485.22 | 110 | 30 | 56 | 140 | 30 | 62 | 140 | 30 | 70 |
| 12B - 3/4” x 7/16” | 85 | 524.50 | 515.55 | 110 | 30 | 56 | 140 | 30 | 62 | 140 | 30 | 70 |
| 12B - 3/4” x 7/16” | 90 | 554.80 | 545.86 | 110 | 30 | 56 | 140 | 30 | 62 | 140 | 30 | 70 |
| 12B - 3/4” x 7/16” | 95 | 585.10 | 576.17 | 110 | 30 | 56 | 140 | 30 | 62 | 140 | 30 | 70 |
| 12B - 3/4” x 7/16” | 100 | 615.40 | 606.47 | 110 | 30 | 56 | 140 | 30 | 62 | 140 | 30 | 70 |
| 12B - 3/4” x 7/16” | 110 | 676.10 | 667.11 | 110 | 30 | 56 | 140 | 30 | 62 | 140 | 30 | 70 |
| 12B - 3/4” x 7/16” | 114 | 700.60 | 691.36 | 110 | 30 | 56 | 140 | 30 | 62 | 140 | 30 | 70 |
| 12B - 3/4” x 7/16” | 120 | 736.70 | 727.74 | 110 | 30 | 56 | 140 | 30 | 62 | 140 | 30 | 70 |
| 12B - 3/4” x 7/16” | 125 | 767.00 | 758.05 | 110 | 30 | 56 | 140 | 30 | 62 | 140 | 30 | 70 |
