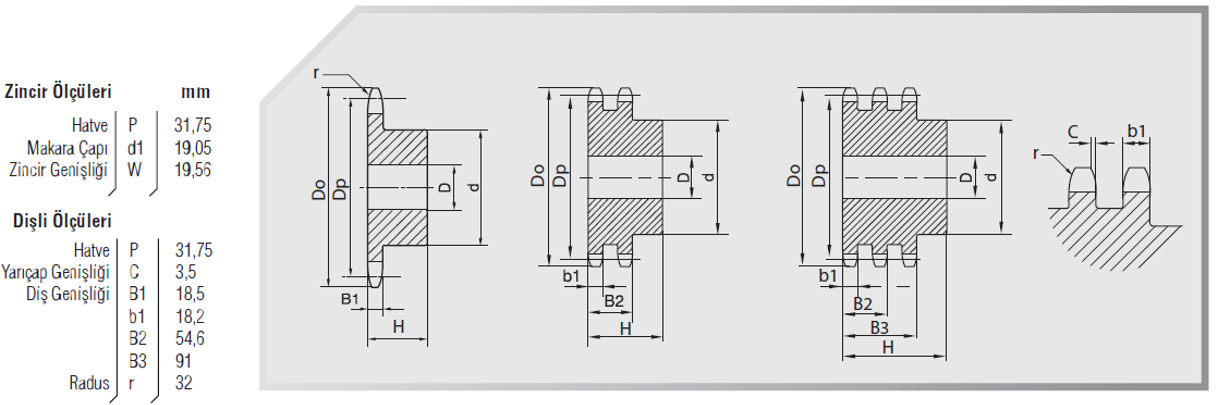

20 B Zincir Dişli Ölçüleri
| Ürün Kodu | Diş Sayısı Z | Diş Üstü Do | Bölüm Dairesi | Tek Sıra d | Tek Sıra-D | Tek Sıra H | Çift Sıra d | Çift Sıra-D | Çift Sıra H | Üç Sıra d | Üç Sıra-D | Üç Sıra H |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Ürün Kodu | Diş Sayısı Z | Diş Üstü Do | Bölüm Dairesi | Tek Sıra d | Tek Sıra-D | Tek Sıra H | Çift Sıra d | Çift Sıra-D | Çift Sıra H | Üç Sıra d | Üç Sıra-D | Üç Sıra H |
| 20B - 1 “1/4x3/4” | 8 | 98.10 | 82.96 | 53 | 20 | 40 | 53 | 20 | 75 | 53 | 20 | 110 |
| 20B - 1 “1/4x3/4” | 9 | 108.00 | 92.84 | 63 | 20 | 40 | 63 | 20 | 75 | 63 | 20 | 110 |
| 20B - 1 “1/4x3/4” | 10 | 117.90 | 102.74 | 70 | 20 | 40 | 70 | 20 | 75 | 70 | 20 | 110 |
| 20B - 1 “1/4x3/4” | 11 | 127.80 | 112.68 | 77 | 20 | 45 | 80 | 20 | 80 | 80 | 20 | 110 |
| 20B - 1 “1/4x3/4” | 12 | 137.80 | 122.68 | 88 | 20 | 45 | 90 | 20 | 80 | 90 | 20 | 110 |
| 20B - 1 “1/4x3/4” | 13 | 147.80 | 132.65 | 98 | 20 | 45 | 100 | 20 | 80 | 100 | 20 | 110 |
| 20B - 1 “1/4x3/4” | 14 | 157.80 | 142.68 | 108 | 20 | 45 | 110 | 20 | 80 | 110 | 20 | 110 |
| 20B - 1 “1/4x3/4” | 15 | 167.90 | 152.72 | 118 | 20 | 45 | 120 | 20 | 80 | 120 | 20 | 110 |
| 20B - 1 “1/4x3/4” | 16 | 177.90 | 162.75 | 120 | 25 | 50 | 120 | 25 | 80 | 120 | 25 | 110 |
| 20B - 1 “1/4x3/4” | 17 | 187.90 | 172.78 | 120 | 25 | 50 | 120 | 25 | 80 | 120 | 25 | 110 |
| 20B - 1 “1/4x3/4” | 18 | 198.00 | 182.85 | 120 | 25 | 50 | *120 | 25 | 80 | *120 | 25 | 110 |
| 20B - 1 “1/4x3/4” | 19 | 208.10 | 192.91 | 120 | 25 | 50 | *120 | 25 | 80 | *120 | 25 | 110 |
| 20B - 1 “1/4x3/4” | 20 | 218.10 | 202.98 | 120 | 25 | 50 | *120 | 25 | 80 | *120 | 25 | 110 |
| 20B - 1 “1/4x3/4” | 21 | 228.20 | 213.04 | 140 | 25 | 55 | *140 | 25 | 80 | *140 | 25 | 110 |
| 20B - 1 “1/4x3/4” | 22 | 238.30 | 223.11 | 140 | 25 | 55 | *140 | 25 | 80 | *140 | 25 | 110 |
| 20B - 1 “1/4x3/4” | 23 | 248.30 | 233.17 | 140 | 25 | 55 | *140 | 25 | 80 | *140 | 25 | 110 |
| 20B - 1 “1/4x3/4” | 24 | 258.40 | 243.23 | 140 | 25 | 55 | *140 | 25 | 80 | *140 | 25 | 110 |
| 20B - 1 “1/4x3/4” | 25 | 268.50 | 253.33 | 140 | 25 | 55 | *140 | 25 | 80 | *140 | 25 | 110 |
| 20B - 1 “1/4x3/4” | 26 | 278.60 | 263.40 | *150 | 25 | 55 | *150 | 25 | 80 | *150 | 25 | 110 |
| 20B - 1 “1/4x3/4” | 27 | 288.60 | 273.48 | *150 | 25 | 55 | *150 | 25 | 80 | *150 | 25 | 110 |
| 20B - 1 “1/4x3/4” | 28 | 298.70 | 283.56 | *150 | 25 | 55 | *150 | 25 | 80 | *150 | 25 | 110 |
| 20B - 1 “1/4x3/4” | 29 | 308.80 | 293.65 | *150 | 25 | 55 | *150 | 25 | 80 | *150 | 25 | 110 |
| 20B - 1 “1/4x3/4” | 30 | 318.90 | 303.75 | *150 | 25 | 55 | *150 | 25 | 80 | *150 | 25 | 110 |
| 20B - 1 “1/4x3/4” | 31 | 329.00 | 313.85 | *150 | 25 | 55 | *150 | 25 | 80 | *150 | 30 | 110 |
| 20B - 1 “1/4x3/4” | 32 | 339.10 | 323.91 | *150 | 25 | 55 | *150 | 25 | 80 | *150 | 30 | 110 |
| 20B - 1 “1/4x3/4” | 33 | 349.20 | 334.01 | *150 | 25 | 55 | *150 | 25 | 80 | *150 | 30 | 110 |
| 20B - 1 “1/4x3/4” | 34 | 359.30 | 334.10 | *150 | 25 | 55 | *150 | 25 | 80 | *150 | 30 | 110 |
| 20B - 1 “1/4x3/4” | 35 | 369.40 | 354.20 | *150 | 25 | 55 | *150 | 25 | 80 | *150 | 30 | 110 |
| 20B - 1 “1/4x3/4” | 36 | 379.50 | 364.30 | *150 | 25 | 55 | *150 | 30 | 80 | *150 | 30 | 110 |
| 20B - 1 “1/4x3/4” | 37 | 389.50 | 374.39 | *150 | 25 | 55 | *150 | 30 | 80 | *150 | 30 | 110 |
| 20B - 1 “1/4x3/4” | 38 | 399.60 | 384.49 | *150 | 25 | 55 | *150 | 30 | 80 | *150 | 30 | 110 |
| 20B - 1 “1/4x3/4” | 39 | 409.70 | 394.59 | *150 | 25 | 55 | *150 | 30 | 80 | *150 | 30 | 110 |
| 20B - 1 “1/4x3/4” | 40 | 419.80 | 404.66 | *150 | 25 | 55 | *150 | 30 | 80 | *150 | 30 | 110 |
| 20B - 1 “1/4x3/4” | 41 | 429.90 | 414.78 | *150 | 30 | 70 | *160 | 30 | 90 | *160 | 30 | 110 |
| 20B - 1 “1/4x3/4” | 42 | 440.00 | 424.88 | *150 | 30 | 70 | *160 | 30 | 90 | *160 | 40 | 110 |
| 20B - 1 “1/4x3/4” | 43 | 450.10 | 434.97 | *150 | 30 | 70 | *160 | 30 | 90 | *160 | 40 | 110 |
| 20B - 1 “1/4x3/4” | 44 | 460.20 | 445.07 | *150 | 30 | 70 | *160 | 30 | 90 | *160 | 30 | 110 |
| 20B - 1 “1/4x3/4” | 45 | 470.30 | 455.17 | *150 | 30 | 70 | *160 | 30 | 90 | *160 | 30 | 110 |
| 20B - 1 “1/4x3/4” | 46 | 480.40 | 465.26 | *150 | 30 | 70 | *160 | 30 | 90 | *160 | 30 | 110 |
| 20B - 1 “1/4x3/4” | 47 | 490.50 | 475.36 | *150 | 30 | 70 | *160 | 30 | 90 | *160 | 30 | 110 |
| 20B - 1 “1/4x3/4” | 48 | 500.60 | 485.46 | *150 | 30 | 70 | *160 | 30 | 90 | *160 | 30 | 110 |
| 20B - 1 “1/4x3/4” | 49 | 510.70 | 495.55 | *150 | 30 | 70 | *160 | 30 | 90 | *160 | 30 | 110 |
| 20B - 1 “1/4x3/4” | 50 | 520.80 | 505.65 | *150 | 30 | 70 | *160 | 30 | 90 | *160 | 30 | 110 |
| 20B - 1 “1/4x3/4” | 51 | 530.90 | 515.75 | *150 | 30 | 80 | *160 | 30 | 100 | *180 | 30 | 123 |
| 20B - 1 “1/4x3/4” | 52 | 541.00 | 525.84 | *150 | 30 | 80 | *160 | 30 | 100 | *180 | 30 | 123 |
| 20B - 1 “1/4x3/4” | 53 | 551.10 | 535.94 | *150 | 30 | 80 | *160 | 30 | 100 | *180 | 30 | 123 |
| 20B - 1 “1/4x3/4” | 54 | 561.20 | 546.07 | *150 | 30 | 80 | *160 | 30 | 100 | *180 | 30 | 123 |
| 20B - 1 “1/4x3/4” | 55 | 571.30 | 556.16 | *150 | 30 | 80 | *160 | 30 | 100 | *180 | 30 | 123 |
| 20B - 1 “1/4x3/4” | 56 | 581.40 | 566.26 | *150 | 30 | 80 | *160 | 30 | 100 | *180 | 30 | 123 |
| 20B - 1 “1/4x3/4” | 57 | 591.50 | 576.36 | *150 | 30 | 80 | *160 | 30 | 100 | *180 | 30 | 123 |
| 20B - 1 “1/4x3/4” | 58 | 601.60 | 586.45 | *150 | 30 | 80 | *160 | 30 | 100 | *180 | 30 | 123 |
| 20B - 1 “1/4x3/4” | 59 | 611.70 | 596.55 | *150 | 30 | 80 | *160 | 30 | 100 | *180 | 30 | 123 |
| 20B - 1 “1/4x3/4” | 60 | 621.80 | 606.65 | *150 | 30 | 80 | *160 | 30 | 100 | *180 | 30 | 123 |
| 20B - 1 “1/4x3/4” | 62 | 642.00 | 626.87 | *150 | 30 | 80 | *160 | 30 | 100 | *180 | 30 | 123 |
| 20B - 1 “1/4x3/4” | 64 | 662.20 | 647.06 | *150 | 30 | 80 | *160 | 30 | 100 | *180 | 30 | 123 |
| 20B - 1 “1/4x3/4” | 65 | 672.30 | 657.16 | *150 | 30 | 80 | *160 | 30 | 100 | *180 | 30 | 123 |
| 20B - 1 “1/4x3/4” | 66 | 682.40 | 667.26 | *150 | 30 | 80 | *180 | 30 | 100 | *200 | 30 | 123 |
| 20B - 1 “1/4x3/4” | 68 | 702.60 | 687.48 | *150 | 30 | 80 | *180 | 30 | 100 | *200 | 30 | 123 |
| 20B - 1 “1/4x3/4” | 70 | 722.80 | 707.67 | *150 | 30 | 80 | *180 | 30 | 100 | *200 | 30 | 123 |
| 20B - 1 “1/4x3/4” | 72 | 743.10 | 727.90 | *150 | 30 | 80 | *180 | 30 | 100 | *200 | 30 | 123 |
| 20B - 1 “1/4x3/4” | 75 | 773.30 | 758.19 | *150 | 30 | 80 | *180 | 30 | 100 | *200 | 30 | 123 |
| 20B - 1 “1/4x3/4” | 76 | 783.50 | 768.32 | *150 | 30 | 80 | *180 | 30 | 100 | *200 | 30 | 123 |
| 20B - 1 “1/4x3/4” | 80 | 823.90 | 808.72 | *150 | 30 | 80 | *180 | 30 | 100 | *200 | 30 | 123 |
| 20B - 1 “1/4x3/4” | 85 | 874.40 | 859.25 | *150 | 30 | 90 | *180 | 30 | 100 | *200 | 30 | 123 |
| 20B - 1 “1/4x3/4” | 90 | 924.90 | 909.76 | *150 | 30 | 90 | *180 | 30 | 100 | *200 | 30 | 123 |
| 20B - 1 “1/4x3/4” | 95 | 975.20 | 960.28 | *150 | 30 | 90 | *180 | 30 | 100 | *200 | 30 | 123 |
| 20B - 1 “1/4x3/4” | 100 | 1026.00 | 1010.79 | *150 | 30 | 90 | *180 | 30 | 100 | *200 | 30 | 123 |
| 20B - 1 “1/4x3/4” | 114 | 1167.40 | 1152.26 | *150 | 30 | 90 | *180 | 30 | 100 | *200 | 30 | 126 |
