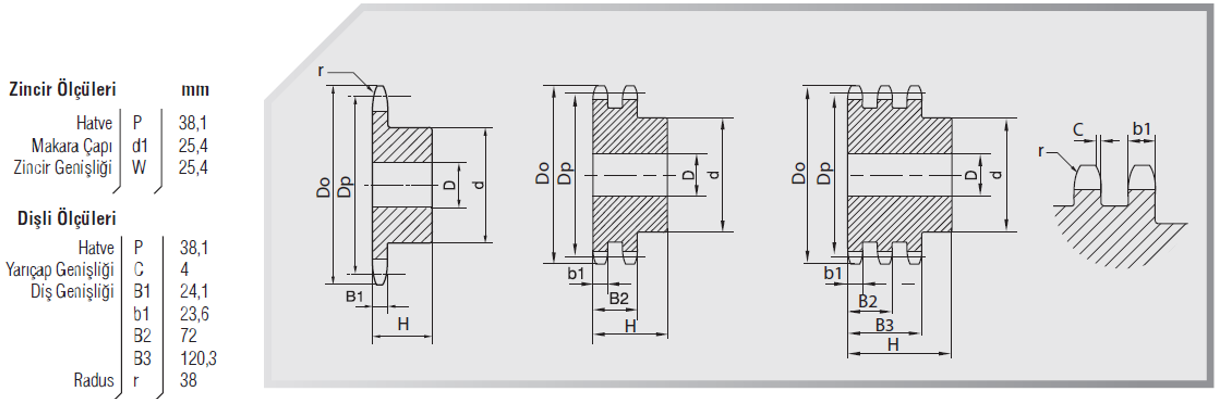

24 B Zincir Dişli Ölçüleri
| Ürün Kodu | Diş Sayısı Z | Diş Üstü Do | Bölüm Dairesi | Tek Sıra d | Tek Sıra-D | Tek Sıra H | Çift Sıra d | Çift Sıra-D | Çift Sıra H | Üç Sıra d | Üç Sıra-D | Üç Sıra H |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Ürün Kodu | Diş Sayısı Z | Diş Üstü Do | Bölüm Dairesi | Tek Sıra d | Tek Sıra-D | Tek Sıra H | Çift Sıra d | Çift Sıra-D | Çift Sıra H | Üç Sıra d | Üç Sıra-D | Üç Sıra H |
| 24B - 1 ”1/2x1” | 8 | 115.00 | 99.55 | 58 | 20 | 45 | 58 | 25 | 95 | 58 | 25 | 140 |
| 24B - 1 ”1/2x1” | 9 | 126.40 | 111.40 | 70 | 20 | 45 | 70 | 25 | 95 | 70 | 25 | 140 |
| 24B - 1 ”1/2x1” | 10 | 138.00 | 123.29 | 80 | 20 | 45 | 80 | 25 | 95 | 80 | 25 | 140 |
| 24B - 1 ”1/2x1” | 11 | 150.00 | 135.21 | 90 | 25 | 50 | 90 | 25 | 100 | 90 | 25 | 150 |
| 24B - 1 ”1/2x1” | 12 | 162.00 | 147.22 | 102 | 25 | 50 | 102 | 25 | 100 | 102 | 25 | 150 |
| 24B - 1 ”1/2x1” | 13 | 174.20 | 159.18 | 114 | 25 | 50 | 114 | 25 | 100 | 114 | 25 | 150 |
| 24B - 1 ”1/2x1” | 14 | 186.20 | 171.22 | 128 | 25 | 50 | 128 | 25 | 100 | 128 | 25 | 150 |
| 24B - 1 ”1/2x1” | 15 | 198.20 | 183.26 | 140 | 25 | 50 | 140 | 25 | 100 | 140 | 25 | 150 |
| 24B - 1 ”1/2x1” | 16 | 210.30 | 195.30 | *140 | 25 | 55 | *140 | 25 | 100 | *140 | 25 | 150 |
| 24B - 1 ”1/2x1” | 17 | 222.30 | 207.34 | *140 | 25 | 55 | *150 | 25 | 100 | *150 | 25 | 150 |
| 24B - 1 ”1/2x1” | 18 | 234.30 | 219.42 | *140 | 25 | 55 | *160 | 25 | 100 | *160 | 25 | 150 |
| 24B - 1 ”1/2x1” | 19 | 246.50 | 231.49 | *140 | 25 | 55 | *160 | 25 | 100 | *160 | 25 | 150 |
| 24B - 1 ”1/2x1” | 20 | 258.60 | 243.57 | *140 | 25 | 55 | *160 | 25 | 100 | *160 | 25 | 150 |
| 24B - 1 ”1/2x1” | 21 | 270.60 | 255.65 | *150 | 25 | 60 | *160 | 25 | 100 | *160 | 30 | 150 |
| 24B - 1 ”1/2x1” | 22 | 282.70 | 267.73 | *150 | 25 | 60 | *160 | 25 | 100 | *160 | 30 | 150 |
| 24B - 1 ”1/2x1” | 23 | 294.80 | 279.80 | *150 | 25 | 60 | *160 | 25 | 100 | *160 | 30 | 150 |
| 24B - 1 ”1/2x1” | 24 | 306.80 | 291.88 | *150 | 25 | 60 | *160 | 25 | 100 | *160 | 30 | 150 |
| 24B - 1 ”1/2x1” | 25 | 319.00 | 304.00 | *150 | 25 | 60 | *160 | 25 | 100 | *160 | 30 | 150 |
| 24B - 1 ”1/2x1” | 26 | 331.00 | 316.08 | *160 | 30 | 60 | *160 | 30 | 100 | *160 | 30 | 150 |
| 24B - 1 ”1/2x1” | 27 | 343.20 | 328.19 | *160 | 30 | 60 | *160 | 30 | 100 | *160 | 30 | 150 |
| 24B - 1 ”1/2x1” | 28 | 355.20 | 340.27 | *160 | 30 | 60 | *160 | 30 | 100 | *160 | 30 | 150 |
| 24B - 1 ”1/2x1” | 29 | 367.30 | 352.38 | *160 | 30 | 60 | *160 | 30 | 100 | *160 | 30 | 150 |
| 24B - 1 ”1/2x1” | 30 | 379.50 | 364.50 | *160 | 30 | 60 | *160 | 30 | 100 | *160 | 30 | 150 |
| 24B - 1 ”1/2x1” | 31 | 391.60 | 376.62 | *160 | 30 | 60 | *170 | 30 | 100 | *170 | 40 | 150 |
| 24B - 1 ”1/2x1” | 32 | 403.70 | 388.69 | *160 | 30 | 60 | *170 | 30 | 100 | *170 | 40 | 150 |
| 24B - 1 ”1/2x1” | 33 | 415.80 | 400.81 | *160 | 30 | 60 | *170 | 30 | 100 | *170 | 40 | 150 |
| 24B - 1 ”1/2x1” | 34 | 427.80 | 412.93 | *160 | 30 | 60 | *170 | 30 | 100 | *170 | 40 | 150 |
| 24B - 1 ”1/2x1” | 35 | 440.00 | 425.04 | *160 | 30 | 60 | *170 | 30 | 100 | *170 | 40 | 150 |
| 24B - 1 ”1/2x1” | 36 | 452.00 | 437.16 | *160 | 30 | 60 | *170 | 30 | 100 | *170 | 40 | 150 |
| 24B - 1 ”1/2x1” | 37 | 464.20 | 449.27 | *160 | 30 | 60 | *170 | 30 | 100 | *170 | 40 | 150 |
| 24B - 1 ”1/2x1” | 38 | 476.20 | 461.39 | *160 | 30 | 60 | *170 | 30 | 100 | *170 | 40 | 150 |
| 24B - 1 ”1/2x1” | 39 | 488.50 | 473.50 | *160 | 30 | 60 | *170 | 30 | 100 | *170 | 40 | 150 |
| 24B - 1 ”1/2x1” | 40 | 500.60 | 485.62 | *160 | 30 | 60 | *170 | 30 | 100 | *170 | 40 | 150 |
| 24B - 1 ”1/2x1” | 41 | 512.60 | 497.74 | *160 | 30 | 90 | *170 | 30 | 100 | *170 | 40 | 150 |
| 24B - 1 ”1/2x1” | 42 | 524.70 | 509.85 | *160 | 30 | 90 | *170 | 40 | 100 | *170 | 40 | 150 |
| 24B - 1 ”1/2x1” | 43 | 536.80 | 521.97 | *160 | 30 | 90 | *170 | 40 | 100 | *170 | 40 | 150 |
| 24B - 1 ”1/2x1” | 44 | 549.00 | 534.08 | *160 | 30 | 90 | *180 | 40 | 100 | *200 | 40 | 150 |
| 24B - 1 ”1/2x1” | 45 | 561.20 | 546.20 | *160 | 30 | 90 | *180 | 40 | 100 | *200 | 40 | 150 |
| 24B - 1 ”1/2x1” | 46 | 573.30 | 558.32 | *160 | 30 | 90 | *180 | 40 | 100 | *200 | 40 | 150 |
| 24B - 1 ”1/2x1” | 47 | 585.40 | 570.43 | *160 | 30 | 90 | *180 | 40 | 100 | *200 | 40 | 150 |
| 24B - 1 ”1/2x1” | 48 | 597.40 | 582.55 | *160 | 30 | 90 | *180 | 40 | 100 | *200 | 40 | 150 |
| 24B - 1 ”1/2x1” | 49 | 609.50 | 594.66 | *160 | 30 | 90 | *180 | 40 | 100 | *200 | 40 | 150 |
| 24B - 1 ”1/2x1” | 50 | 621.70 | 606.78 | *160 | 30 | 90 | *180 | 40 | 100 | *200 | 40 | 150 |
| 24B - 1 ”1/2x1” | 51 | 633.80 | 618.89 | *160 | 30 | 100 | *180 | 40 | 110 | *200 | 40 | 150 |
| 24B - 1 ”1/2x1” | 52 | 646.00 | 631.01 | *160 | 30 | 100 | *180 | 40 | 110 | *200 | 40 | 150 |
| 24B - 1 ”1/2x1” | 53 | 658.00 | 643.13 | *160 | 30 | 100 | *180 | 40 | 110 | *200 | 40 | 150 |
| 24B - 1 ”1/2x1” | 54 | 670.20 | 655.25 | *160 | 30 | 100 | *180 | 40 | 110 | *200 | 40 | 150 |
| 24B - 1 ”1/2x1” | 55 | 682.30 | 667.40 | *160 | 30 | 100 | *180 | 40 | 110 | *200 | 40 | 150 |
| 24B - 1 ”1/2x1” | 56 | 694.40 | 679.50 | *160 | 30 | 100 | *180 | 40 | 110 | *200 | 40 | 150 |
| 24B - 1 ”1/2x1” | 57 | 706.50 | 691.73 | *160 | 30 | 100 | *180 | 40 | 110 | *200 | 40 | 150 |
| 24B - 1 ”1/2x1” | 58 | 718.60 | 703.74 | *160 | 30 | 100 | *180 | 40 | 110 | *200 | 40 | 150 |
| 24B - 1 ”1/2x1” | 59 | 730.70 | 715.86 | *160 | 30 | 100 | *180 | 40 | 110 | *200 | 40 | 150 |
| 24B - 1 ”1/2x1” | 60 | 742.80 | 727.97 | *160 | 30 | 100 | *180 | 40 | 110 | *200 | 40 | 150 |
| 24B - 1 ”1/2x1” | 62 | 767.20 | 752.24 | *160 | 40 | 100 | *180 | 40 | 110 | *200 | 40 | 150 |
| 24B - 1 ”1/2x1” | 64 | 791.30 | 776.48 | *160 | 40 | 100 | *200 | 40 | 110 | *220 | 40 | 150 |
| 24B - 1 ”1/2x1” | 65 | 803.40 | 788.59 | *160 | 40 | 100 | *200 | 40 | 110 | *220 | 40 | 150 |
| 24B - 1 ”1/2x1” | 66 | 815.60 | 800.17 | *160 | 40 | 100 | *200 | 40 | 120 | *220 | 40 | 150 |
| 24B - 1 ”1/2x1” | 68 | 839.80 | 824.98 | *160 | 40 | 100 | *200 | 40 | 120 | *220 | 40 | 150 |
| 24B - 1 ”1/2x1” | 70 | 864.20 | 849.21 | *160 | 40 | 100 | *200 | 40 | 120 | *220 | 40 | 150 |
| 24B - 1 ”1/2x1” | 72 | 888.40 | 873.48 | *160 | 40 | 100 | *200 | 40 | 120 | *220 | 40 | 150 |
| 24B - 1 ”1/2x1” | 75 | 924.80 | 909.83 | *160 | 40 | 100 | *200 | 40 | 120 | *220 | 40 | 150 |
| 24B - 1 ”1/2x1” | 76 | 936.90 | 921.98 | *160 | 40 | 100 | *200 | 40 | 120 | *220 | 40 | 150 |
| 24B - 1 ”1/2x1” | 80 | 985.40 | 970.44 | *160 | 40 | 100 | *200 | 40 | 120 | *220 | 40 | 150 |
| 24B - 1 ”1/2x1” | 85 | 1046.00 | 1031.10 | *160 | 40 | 100 | *200 | 40 | 120 | *220 | 40 | 150 |
| 24B - 1 ”1/2x1” | 95 | 1167.30 | 1152.33 | *160 | 40 | 100 | *200 | 40 | 120 | *220 | 40 | 150 |
| 24B - 1 ”1/2x1” | 95 | 975.20 | 960.28 | *160 | 30 | 100 | *200 | 40 | 120 | *220 | 40 | 150 |
| 24B - 1 ”1/2x1” | 100 | 1026.00 | 1010.79 | *160 | 30 | 100 | *200 | 40 | 120 | *220 | 40 | 150 |
| 24B - 1 ”1/2x1” | 114 | 1167.40 | 1152.26 | *160 | 30 | 100 | *200 | 40 | 120 | *220 | 40 | 150 |
