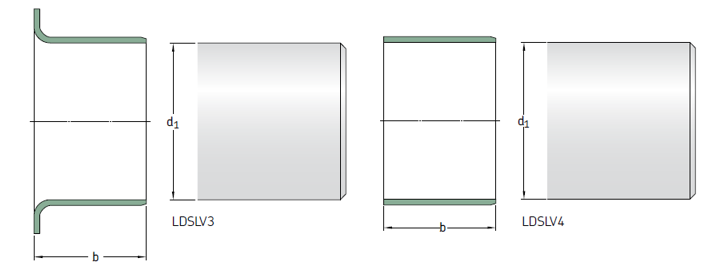

Ağır Seri Tip Şaft Tamir Burçları
| TİP | d1 (mm)(min) | b (mm) | Referans Dış Çap | Tasarım | TİP | d1 (mm)(min) | b (mm) | Referans Dış Çap | Tasarım |
|---|---|---|---|---|---|---|---|---|---|
| TİP | d1 (mm)(min) | b (mm) | Referans Dış Çap | Tasarım | TİP | d1 (mm)(min) | b (mm) | Referans Dış Çap | Tasarım |
| 90179 | 215.00 | 25.40 | 220.00 | LDSLV3 | 97064 | 419.99 | 63.50 | 425.00 | LDSLV3 |
| 97831 | 215.20 | 35.00 | 220.00 | LDSLV3 | 87916 | 435.20 | 63.50 | 440.00 | LDSLV4 |
| 90806 | 220.00 | 25.00 | 225.00 | LDSLV3 | 90347 | 455.00 | 30.00 | 460.00 | LDSLV4 |
| 87914 | 40.00 | 225.00 | LDSLV3 | 87504 | 455.20 | 50.00 | 460.00 | LDSLV4 | |
| 87915 | 50.80 | 225.00 | LDSLV3 | 87921 | 475.18 | 20.00 | 480.00 | LDSLV4 | |
| 90952 | 235.23 | 18.00 | 240.00 | LDSLV4 | 90259 | 494.44 | 24.00 | 500.00 | LDSLV4 |
| 90156 | 240.00 | 17.50 | 250.00 | LDSLV3 | 87503 | 495.20 | 30.00 | 500.00 | LDSLV4 |
| 87911 | 240.21 | 44.00 | 245.00 | LDSLV4 | 90149 | 503.25 | 24.00 | 508.00 | LDSLV4 |
| 90766 | 245.20 | 63.50 | 250.00 | LDSLV3 | 87783 | 530.00 | 20.00 | 535.00 | LDSLV4 |
| 90546 | 275.00 | 22.00 | 280.00 | LDSLV4 | 90802 | 535.23 | 63.00 | 540.00 | LDSLV4 |
| 90437 | 280.00 | 45.00 | 285.00 | LDSLV4 | 90075 | 555.20 | 63.50 | 560.00 | LDSLV4 |
| 90238 | 285.22 | 63.50 | 290.00 | LDSLV4 | 90951 | 575.23 | 63.50 | 580.00 | LDSLV4 |
| 90114 | 295.20 | 32.00 | 300.00 | LDSLV3 | 90292 | 585.22 | 55.00 | 590.00 | LDSLV4 |
| 90155 | 315.19 | 63.50 | 320.00 | LDSLV4 | 90120 | 595.20 | 58.20 | 600.00 | LDSLV3 |
| 90198 | 320.00 | 63.50 | 325.00 | LDSLV4 | 89997 | 63.50 | 600.00 | LDSLV4 | |
| 90239 | 325.22 | 63.50 | 330.00 | LDSLV4 | 90241 | 595.22 | 50.00 | 600.00 | LDSLV3 |
| 90777 | 335.22 | 39.00 | 340.00 | LDSLV4 | 90004 | 645.20 | 64.00 | 650.00 | LDSLV4 |
| 90792 | 50.00 | 340.00 | LDSLV4 | 87817 | 645.24 | 63.50 | 650.00 | LDSLV3 | |
| 87901 | 340.00 | 18.00 | 340.00 | LDSLV4 | 90799 | 665.20 | 45.00 | 670.00 | LDSLV4 |
| 90801 | 50.00 | 340.00 | LDSLV4 | 90953 | 685.22 | 63.50 | 690.00 | LDSLV4 | |
| 90113 | 50.00 | 345.00 | LDSLV3 | 87820 | 714.81 | 50.00 | 720.00 | LDSLV4 | |
| 90778 | 355.20 | 25.40 | 360.00 | LDSLV4 | 89949 | 735.23 | 63.00 | 740.00 | LDSLV4 |
| 90785 | 50.00 | 360.00 | LDSLV4 | 87981 | 755.19 | 63.50 | 760.00 | LDSLV3 | |
| 87500 | 360.00 | 44.00 | 365.00 | LDSLV4 | 90221 | 865.23 | 63.50 | 870.00 | LDSLV4 |
| 90788 | 360.22 | 45.00 | 365.00 | LDSLV4 | 90103 | 875.18 | 63.50 | 880.00 | LDSLV4 |
| 87531 | 365.20 | 20.00 | 370.00 | LDSLV4 | 90786 | 1015.20 | 25.00 | 1020.00 | LDSLV4 |
| 87461 | 395.22 | 63.50 | 400.00 | LDSLV4 | 89947 | 1049.33 | 60.00 | 1054.00 | LDSLV4 |
| 90042 | 405.23 | 50.00 | 410.00 | LDSLV4 | 89946 | 1100.23 | 63.00 | 1105.00 | LDSLV4 |
