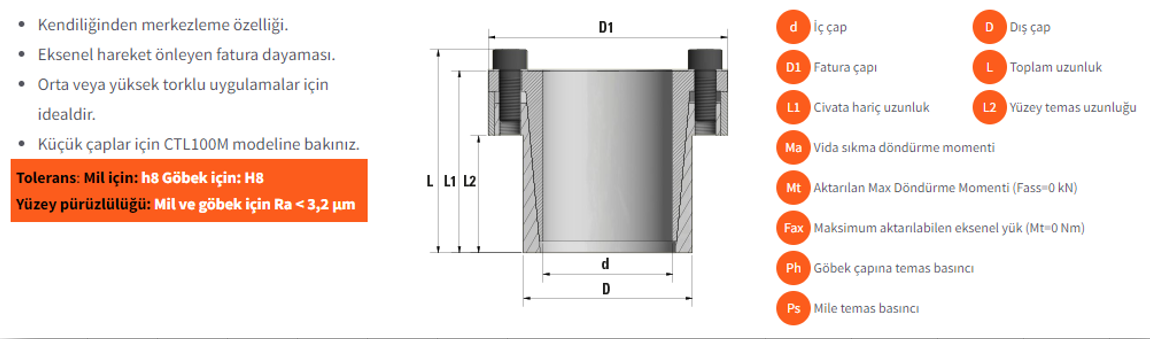

CTL 150 TKK 150 Tipi
| TİP | d (mm) | D (mm) | L1 (mm) | L (mm) | PT N | Pa N | Mt Nm | Fax KN | Ps N/mm | Ph N/mm | d1 (mm) | D1 (mm) | 1 (mm) | 2 (mm) | 3 (mm) | 4 (mm) | Ağırlık KG |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TİP | d (mm) | D (mm) | L1 (mm) | L (mm) | PT N | Pa N | Mt Nm | Fax KN | Ps N/mm | Ph N/mm | d1 (mm) | D1 (mm) | 1 (mm) | 2 (mm) | 3 (mm) | 4 (mm) | Ağırlık KG |
| CTL150-6 | 6 | 9 | 3.7 | 4.5 | 3800 | 2 | 0.84 | 115 | 75 | 6.1 | 8.9 | 2.5 | 2.5 | 3 | 4 | 0.002 | |
| CTL150-7 | 7 | 10 | 3.7 | 4.5 | 3900 | 3 | 0.86 | 105 | 70 | 6.1 | 9.9 | 2.5 | 2.5 | 3 | 4 | 0.002 | |
| CTL150-8 | 8 | 11 | 3.7 | 4.5 | 5300 | 5 | 1.17 | 120 | 90 | 8.1 | 10.9 | 2.5 | 2.5 | 3 | 4 | 0.002 | |
| CTL150-9 | 9 | 12 | 3.7 | 4.5 | 7650 | 15600 | 8 | 1.76 | 140 | 105 | 9.1 | 11.9 | 2.5 | 2.5 | 3 | 4 | 0.002 |
| CTL150-10 | 10 | 13 | 3.7 | 4.5 | 7000 | 15600 | 10 | 1.91 | 135 | 105 | 10.1 | 12.9 | 2.5 | 2.5 | 3 | 4 | 0.002 |
| CTL150-12 | 12 | 15 | 3.7 | 4.5 | 7000 | 15600 | 11 | 1.9 | 115 | 90 | 12.1 | 14.9 | 2.5 | 2.5 | 3 | 4 | 0.002 |
| CTL150-13 | 13 | 16 | 3.7 | 4.5 | 6500 | 15600 | 13 | 2.02 | 110 | 90 | 13.1 | 15.9 | 2.5 | 2.5 | 3 | 4 | 0.004 |
| CTL150-14 | 14 | 18 | 5.3 | 6.3 | 11000 | 25400 | 22 | 3.18 | 115 | 90 | 14.1 | 17.9 | 3.5 | 3.5 | 4.5 | 5.5 | 0.005 |
| CTL150-15 | 15 | 19 | 5.3 | 6.3 | 10800 | 25400 | 24 | 3.24 | 110 | 85 | 15.1 | 18.9 | 3.5 | 3.5 | 4.5 | 5.5 | 0.005 |
| CTL150-16 | 16 | 20 | 5.3 | 6.3 | 10000 | 25400 | 27 | 3.42 | 105 | 85 | 16.1 | 19.9 | 3.5 | 3.5 | 4.5 | 5.5 | 0.006 |
| CTL150-17 | 17 | 21 | 5.3 | 6.3 | 9600 | 25400 | 30 | 3.51 | 105 | 85 | 17.1 | 20.9 | 3.5 | 3.5 | 4.5 | 5.5 | 0.006 |
| CTL150-18 | 18 | 22 | 5.3 | 6.3 | 9150 | 25400 | 32 | 3.61 | 100 | 80 | 18.1 | 21.9 | 3.5 | 3.5 | 4.5 | 5.5 | 0.007 |
| CTL150-19 | 19 | 24 | 5.3 | 6.3 | 12500 | 36000 | 49 | 5.22 | 140 | 110 | 19.2 | 23.8 | 3.5 | 3.5 | 4.5 | 5.5 | 0.007 |
| CTL150-20 | 20 | 25 | 5.3 | 6.3 | 12000 | 36000 | 53 | 5.33 | 135 | 105 | 20.2 | 24.8 | 3.5 | 3.5 | 4.5 | 5.5 | 0.009 |
| CTL150-22 | 22 | 26 | 5.3 | 6.3 | 900 | 36000 | 66 | 6 | 135 | 115 | 22.5 | 25.8 | 3.5 | 3.5 | 4.5 | 5.5 | 0.007 |
| CTL150-24 | 24 | 28 | 5.3 | 6.3 | 8400 | 36000 | 73 | 6.13 | 130 | 110 | 24.2 | 27.8 | 3.5 | 3.5 | 4.5 | 5.5 | 0.008 |
| CTL150-25 | 25 | 30 | 5.3 | 6.3 | 10000 | 36000 | 72 | 5.77 | 115 | 95 | 25.2 | 29.8 | 3.5 | 3.5 | 4.5 | 5.5 | 0.009 |
| CTL150-28 | 28 | 32 | 5.3 | 6.3 | 7500 | 36000 | 88 | 6.33 | 115 | 100 | 28.2 | 31.8 | 3.5 | 3.5 | 4.5 | 5.5 | 0.010 |
| CTL150-30 | 30 | 35 | 5.3 | 6.3 | 8600 | 36000 | 91 | 6.08 | 100 | 85 | 30.2 | 34.8 | 3.5 | 3.5 | 4.5 | 5.5 | 0.011 |
| CTL150-32 | 32 | 36 | 5.3 | 6.3 | 7900 | 45000 | 131 | 8.24 | 130 | 115 | 32.2 | 35.8 | 3.5 | 3.5 | 4.5 | 5.5 | 0.011 |
| CTL150-35 | 35 | 40 | 6 | 7 | 10000 | 54000 | 171 | 9.77 | 125 | 110 | 35.2 | 39.8 | 3.5 | 3.5 | 4.5 | 5.5 | 0.016 |
| CTL150-36 | 36 | 42 | 6 | 7 | 11700 | 54000 | 169 | 9.39 | 115 | 100 | 36.2 | 41.8 | 3.5 | 3.5 | 4.5 | 5.5 | 0.019 |
| CTL150-38 | 38 | 44 | 6 | 7 | 11000 | 54000 | 181 | 9.55 | 110 | 95 | 38.2 | 43.8 | 3.5 | 3.5 | 4.5 | 5.5 | 0.021 |
| CTL150-40 | 40 | 45 | 6.6 | 8 | 13900 | 66000 | 231 | 11.57 | 115 | 105 | 40.2 | 44.8 | 3.5 | 4.5 | 5.5 | 6.5 | 0.021 |
| CTL150-42 | 42 | 48 | 6.6 | 8 | 15550 | 66000 | 235 | 11.22 | 110 | 95 | 42.2 | 47.8 | 3.5 | 4.5 | 5.5 | 6.5 | 0.026 |
| CTL150-45 | 45 | 52 | 8.6 | 10 | 28300 | 99000 | 353 | 15.71 | 105 | 95 | 45.2 | 51.8 | 3.5 | 4.5 | 5.5 | 6.5 | 0.045 |
| CTL150-48 | 48 | 55 | 8.6 | 10 | 24700 | 132000 | 572 | 23.84 | 155 | 135 | 48.2 | 54.8 | 3.5 | 4.5 | 5.5 | 6.5 | 0.045 |
| CTL150-50 | 50 | 57 | 8.6 | 10 | 23600 | 132000 | 602 | 24.08 | 150 | 130 | 20.2 | 56.8 | 3.5 | 4.5 | 5.5 | 6.5 | 0.045 |
| CTL150-55 | 55 | 62 | 8.6 | 10 | 21700 | 132000 | 670 | 24.35 | 140 | 125 | 55.2 | 61.8 | 3.5 | 4.5 | 5.5 | 6.5 | 0.049 |
| CTL150-56 | 56 | 64 | 10.4 | 12 | 29500 | 157200 | 790 | 28.2 | 130 | 115 | 56.2 | 63.8 | 3.5 | 4.5 | 5.5 | 7 | 0.070 |
| CTL150-60 | 60 | 68 | 10.4 | 12 | 27500 | 157200 | 860 | 28.6 | 125 | 110 | 60.2 | 67.8 | 3.5 | 4.5 | 5.5 | 7 | 0.070 |
| CTL150-63 | 63 | 71 | 10.4 | 12 | 26500 | 157200 | 910 | 28.8 | 120 | 105 | 63.2 | 70.8 | 3.5 | 4.5 | 5.5 | 7 | 0.080 |
| CTL150-65 | 65 | 73 | 10.4 | 12 | 25500 | 157200 | 950 | 29.2 | 115 | 100 | 65.2 | 72.8 | 3.5 | 4.5 | 5.5 | 7 | 0.090 |
| CTL150-70 | 70 | 79 | 12.2 | 14 | 31000 | 209600 | 1380 | 39.4 | 125 | 110 | 70.3 | 78.7 | 3.5 | 5 | 6.5 | 7.5 | 0.115 |
| CTL150-71 | 71 | 80 | 12.2 | 14 | 31000 | 209600 | 1400 | 39.4 | 120 | 110 | 71.3 | 79.7 | 3.5 | 5 | 6.5 | 7.5 | 0.110 |
| CTL150-75 | 75 | 84 | 12.2 | 14 | 34700 | 209600 | 1450 | 38.6 | 115 | 100 | 75.3 | 83.7 | 3.5 | 5 | 6.5 | 7.5 | 0.120 |
| CTL150-80 | 80 | 91 | 15 | 17 | 48000 | 290000 | 2200 | 55 | 125 | 105 | 80.3 | 90.7 | 7 | 6 | 6.5 | 8 | 0.210 |
| CTL150-85 | 85 | 96 | 15 | 17 | 45500 | 305000 | 2400 | 56.4 | 120 | 105 | 85.3 | 95.7 | 4 | 6 | 6.5 | 8 | 0.210 |
| CTL150-90 | 90 | 101 | 15 | 17 | 43600 | 320000 | 2730 | 60.5 | 120 | 105 | 90.3 | 100.7 | 4 | 6 | 6.5 | 8 | 0.220 |
