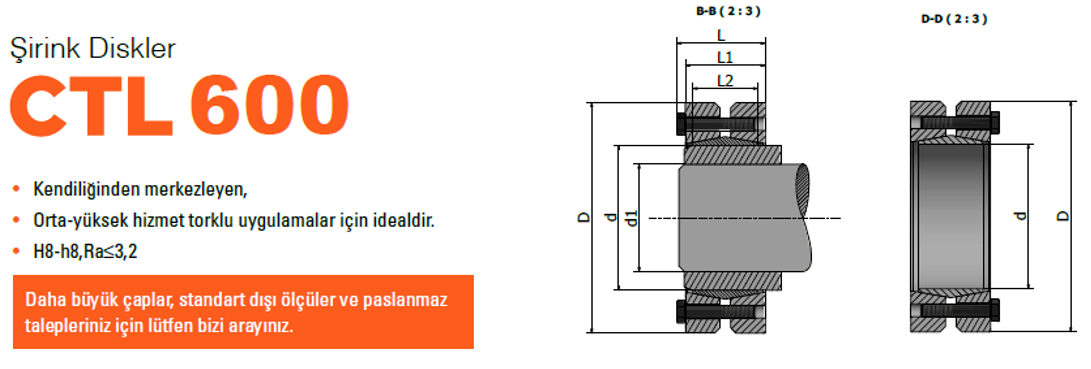

CTL 600 TKK 600 Tipi

TİP	0d1 (mm)	d (mm)	D (mm)	L2 (mm)	L1 (mm)	L (mm)	DIN 912 Ad.	DIN 912 12.9 TİP	Ma NM	Mt Nm	Fax KN	Ps N/mm	Ağırlık KG
TİP	0d1 (mm)	d (mm)	D (mm)	L2 (mm)	L1 (mm)	L (mm)	DIN 912 Ad.	DIN 912 12.9 TİP	Ma NM	Mt Nm	Fax KN	Ps N/mm	Ağırlık KG
CTL600-14x37	10	14	37	9	12	14-Aug	3	M4	2-Apr	14	3	73	0.070
CTL600-14x37	11	14	37	9	12	14-Aug	3	M4	2-Apr	26	5	110	0.070
CTL600-14x37	12	14	37	9	12	14-Aug	3	M4	2-Apr	46	8	162	0.070
CTL600-16x41	12	16	41	12	15	18-May	3	M5	4-Aug	34	6	89	0.110
CTL600-16x41	13	16	41	12	15	18-May	3	M5	4-Aug	59	9	132	0.110
CTL600-16x41	14	16	41	12	15	18-May	3	M5	4-Aug	88	13	171	0.110
CTL600-24x50	19	24	50	14	19	22-May	6	M5	6	258	27	232	0.190
CTL600-24x50	20	24	50	14	19	22-May	6	M5	6	310	31	252	0.190
CTL600-24x50	21	24	50	14	19	22-May	6	M5	6	368	35	271	0.190
CTL600-30x60	24	30	60	16	21-May	24	6	M5	6	316	26	156	0.300
CTL600-30x60	25	30	60	16	21-May	24	6	M5	6	371	30	169	0.300
CTL600-30x60	26	30	60	16	21-May	24	6	M5	6	430	33	181	0.300
CTL600-36x72	28	36	72	18	23-May	27-May	5	M6	12	515	37	166	0.480
CTL600-36x72	30	36	72	18	23-May	27-May	5	M6	12	655	44	184	0.480
CTL600-36x72	31	36	72	18	23-May	27-May	5	M6	12	662	43	174	0.480
CTL600-44x80	34	44	80	20	25-May	29-May	7	M6	12	798	47	157	0.610
CTL600-44x80	35	44	80	20	25-May	29-May	7	M6	12	899	51	167	0.610
CTL600-44x80	36	44	80	20	25-May	29-May	7	M6	12	1003	56	176	0.610
CTL600-50x90	38	50	90	22	28	32	8	M6	12	985	52	141	0.830
CTL600-50x90	40	50	90	22	28	32	8	M6	12	1207	60	156	0.830
CTL600-50x90	42	50	90	22	28	32	8	M6	12	1442	69	169	0.830
CTL600-55x100	42	55	100	23	30-May	32	8	M6	12	1088	52	122	1,100
CTL600-55x100	45	55	100	23	30-May	32	8	M6	12	1423	63	139	1,100
CTL600-55x100	48	55	100	23	30-May	32	8	M6	12	1817	76	156	1,100
CTL600-62x110	48	62	110	23	30-May	34.5	10	M6	12	1782	74	153	1,300
CTL600-62x110	50	62	110	23	30-May	34.5	10	M6	12	2047	82	162	1,300
CTL600-62x110	52	62	110	23	30-May	34.5	10	M6	12	2160	83	158	1,300
CTL600-68x115	50	68	115	23	30-May	34.5	10	M6	12	1630	65	129	1,400
CTL600-68x115	55	68	115	23	30-May	34.5	10	M6	12	2034	74	133	1,400
CTL600-68x115	60	68	115	23	30-May	34.5	10	M6	12	2857	95	157	1,400
CTL600-75x138	55	75	138	25	32.5	37.8	7	M8	30	2593	94	156	2,300
CTL600-75x138	60	75	138	25	32.5	37.8	7	M8	30	3521	117	178	2,300
CTL600-75x138	65	75	138	25	32.5	37.8	7	M8	30	4597	141	198	2,300
CTL600-80x145	60	80	145	25	32.5	37.8	7	M8	30	2987	100	151	2,500
CTL600-80x145	65	80	145	25	32.5	37.8	7	M8	30	3947	121	170	2,500
CTL600-80x145	70	80	145	25	32.5	37.8	7	M8	30	5035	144	187	2,500
CTL600-85x155	65	85	155	30	39	44.3	10	M8	30	4800
CTL600-85x155	70	85	155	30	39	22	10	M8	30	6100
CTL600-85x155	75	85	155	30	39	22	10	M8	30	7400
CTL600-90x155	65	90	155	30	39	44.3	10	M8	30	2987	140	163	3,300
CTL600-90x155	70	90	155	30	39	44.3	10	M8	30	5784	165	179	3,300
CTL600-90x155	75	90	155	30	39	44.3	10	M8	30	7159	191	193	3,300
CTL600-100x170	70	100	170	34	44	49.3	12	M8	30	5603	160	153	4,400
CTL600-100x170	75	100	170	34	44	49.3	12	M8	30	6978	186	166	4,400
CTL600-100x170	80	100	170	34	44	49.3	12	M8	30	8561	214	179	4,400
CTL600-110x185	75	110	185	39	50	56.4	9	M10	59	6847	183	142	6,000
CTL600-110x185	80	110	185	39	50	56.4	9	M10	59	8449	211	154	6,000
CTL600-110x185	85	110	185	39	50	56.4	9	M10	59	9228	217	149	6,000
CTL600-115x200	80	115	200	40	50	56.4	10	M10	59	8778	219	156	7,300
CTL600-115x200	85	115	200	40	50	56.4	10	M10	59	9528	224	150	7,300
CTL600-115x200	90	115	200	40	50	56.4	10	M10	59	11608	258	163	7,300
CTL600-120x200	85	120	200	40	50	56.4	10	M10	59	8512	200	134	7,000
CTL600-120x200	90	120	200	40	50	56.4	10	M10	59	10397	231	146	7,000
CTL600-120x200	95	120	200	40	50	56.4	10	M10	59	12537	264	158	7,000
CTL600-125x215	85	125	215	42	54	60.4	12	M10	59	9938	234	149	8,700
CTL600-125x215	90	125	215	42	54	60.4	12	M10	59	12039	268	161	8,700
CTL600-125x215	95	125	215	42	54	60.4	12	M10	59	14330	302	172	8,700
CTL600-140x230	95	140	230	46	60.5	68	10	M12	100	14144	298	155	11,000
CTL600-140x230	100	140	230	46	60.5	68	10	M12	100	16582	332	164	11,000
CTL600-140x230	105	140	230	46	60.5	68	10	M12	100	19285	367	173	11,000
CTL600-155x265	105	155	265	50	64.5	72	12	M12	100	19386	369	160	16,000
CTL600-155x265	110	155	265	50	64.5	72	12	M12	100	22340	406	168	16,000
CTL600-155x265	115	155	265	50	64.5	72	12	M12	100	25580	445	176	16,000
CTL600-165x290	115	165	290	56	71	81	8	M16	250	33045	575	203	22,000
CTL600-165x290	120	165	290	56	71	81	8	M12	250	37222	620	210	22,000
CTL600-165x290	125	165	290	56	71	81	8	M12	250	40581	649	211	22,000
CTL600-175x300	125	175	300	56	71	81	8	M16	250	36349	582	189	23,000
CTL600-175x300	130	175	300	56	71	81	8	M16	250	40772	627	196	23,000
CTL600-175x300	135	175	300	56	71	81	8	M16	250	45314	671	202	23,000
CTL600-185x330	135	185	330	71	86	96	10	M16	250	51195	758	180	35,000
CTL600-185x330	140	185	330	71	86	96	10	M16	250	56587	808	185	35,000
CTL600-185x330	145	185	330	71	86	96	10	M16	250	62669	864	191	35,000
CTL600-195x350	140	195	350	71	86	96	12	M16	250	64539	922	211	40,000
CTL600-195x350	150	195	350	71	86	96	12	M16	250	77600	1035	221	40,000
CTL600-195x350	155	195	350	71	86	96	12	M16	250	84359	1089	225	40,000
CTL600-200x350	150	200	350	71	86	96	12	M16	250	74440	993	212	39,000
CTL600-200x350	155	200	350	71	86	96	12	M16	250	81360	1050	217	39,000
CTL600-200x350	160	200	350	71	86	96	12	M16	250	88291	1104	221	39,000
CTL600-220x370	160	220	370	88	104	114	15	M16	250	94081	1176	190	51,000
CTL600-220x370	165	220	370	88	104	114	15	M16	250	102160	1238	194	51,000
CTL600-220x370	170	220	370	88	104	114	15	M16	250	110681	1302	198	51,000
CTL600-240x405	170	240	405	92	109	121.5	12	M20	490	125063	1471	214	64,000
CTL600-240x405	180	240	405	92	109	121.5	12	M20	490	144140	1602	220	64,000
CTL600-240x405	190	240	405	92	109	121.5	12	M20	490	163520	1721	224	64,000
CTL600-260x440	190	260	440	103	120	132.5	14	M20	490	169177	1781	207	84,000
CTL600-260x440	200	260	440	103	120	132.5	14	M20	490	192888	1929	213	84,000
CTL600-260x440	210	260	440	103	120	132.5	14	M20	490	218649	2082	219	84,000
CTL600-280x460	210	280	460	114	134	146.5	16	M20	490	223215	2126	202	99,000
CTL600-280x460	220	280	460	114	134	146.5	16	M20	490	251043	2282	207	99,000
CTL600-280x460	230	280	460	114	134	146.5	16	M20	490	281011	2444	212	99,000
CTL600-300x485	230	300	485	122	142	154.5	18	M20	490	286546	2492	202	115,000
CTL600-300x485	240	300	485	122	142	154.5	18	M20	490	319728	2664	207	115,000
CTL600-300x485	250	300	485	122	142	154.5	18	M20	490	353631	2829	211	115,000
CTL600-320x520	240	320	520	122	142	154.5	20	M20	490	325906	2716	211	133,000
CTL600-320x520	250	320	520	122	142	154.5	20	M20	490	360335	2883	215	133,000
CTL600-320x520	260	320	520	122	142	154.5	20	M20	490	393,363	3026	217	133,000
CTL600-130x215	130	215	90							11,200	303
CTL600-130x215	130	215	95							13,200	332
CTL600-130x215	130	215	100							15,300	361
