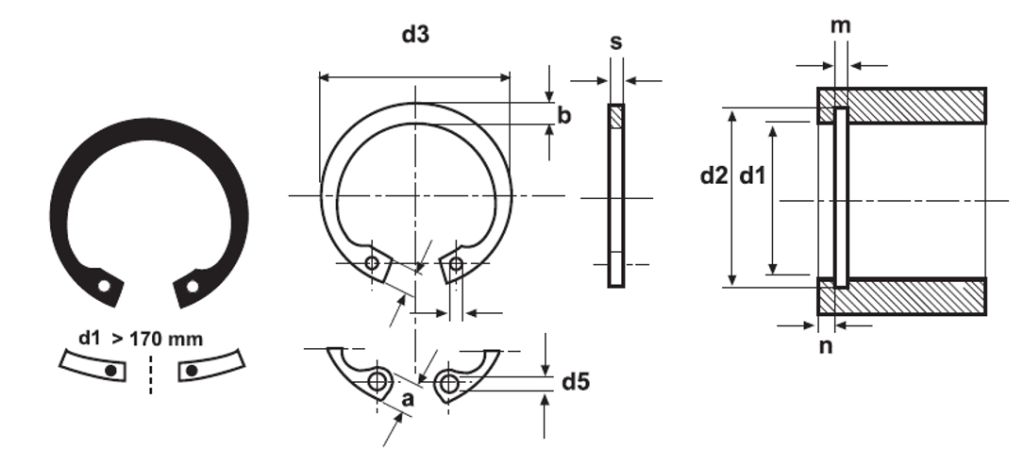

DIN472 Yuva Segmanları
| TİP | d1 (mm) | d2 (mm) | d2 | m H13 | n (min. mm) | S (mm) | d3 (mm) | d3(mm) | a (max. mm) | b (mm) | d5 (min. mm) | 1000 ad/kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TİP | d1 (mm) | d2 (mm) | d2 | m H13 | n (min. mm) | S (mm) | d3 (mm) | d3(mm) | a (max. mm) | b (mm) | d5 (min. mm) | 1000 ad/kg |
| 472/8 | 8 | 8.4 | (mm) | 0.90 | 0.6 | 0/-0,05 | 8.7 | 0,36/-0,10 | 2.4 | 1.1 | 1.0 | 0.100 |
| 472/9 | 9 | 9.4 | 0,09/-0 | 0.90 | 0.6 | 0/-0,05 | 9.8 | 0,36/-0,10 | 2.5 | 1.3 | 1.0 | 0.130 |
| 472/10 | 10 | 10.4 | 0,11/-0 | 1.10 | 0.6 | 0/-0,06 | 10.8 | 0,36/-0,10 | 3.2 | 1.4 | 1.2 | 0.260 |
| 472/11 | 11 | 11.4 | 0,11/-0 | 1.10 | 0.6 | 0/-0,06 | 11.8 | 0,36/-0,10 | 3.3 | 1.5 | 1.2 | 0.310 |
| 472/12 | 12 | 12.5 | 0,11/-0 | 1.10 | 0.8 | 0/-0,06 | 13.0 | 0,36/-0,10 | 3.4 | 1.7 | 1.5 | 0.370 |
| 472/13 | 13 | 13.6 | 0,11/-0 | 1.10 | 0.9 | 0/-0,06 | 14.1 | 0,36/-0,10 | 3.6 | 1.8 | 1.5 | 0.420 |
| 472/14 | 14 | 14.6 | 0,11/-0 | 1.10 | 0.9 | 0/-0,06 | 15.1 | 0,36/-0,10 | 3.7 | 1.8 | 1.7 | 0.520 |
| 472/15 | 15 | 15.7 | 0,11/-0 | 1.10 | 1.1 | 0/-0,06 | 16.2 | 0,36/-0,10 | 3.7 | 2.0 | 1.7 | 0.560 |
| 472/16 | 16 | 16.8 | 0,11/-0 | 1.10 | 1.2 | 0/-0,06 | 17.3 | 0,36/-0,10 | 3.8 | 2.0 | 1.7 | 0.600 |
| 472/17 | 17 | 17.8 | 0,11/-0 | 1.10 | 1.2 | 0/-0,06 | 18.3 | 0,42/-0,13 | 3.9 | 2.1 | 1.7 | 0.650 |
| 472/18 | 18 | 19.0 | 0,13/-0 | 1.10 | 1.5 | 0/-0,06 | 19.5 | 0,42/-0,13 | 4.1 | 2.2 | 2.0 | 0.740 |
| 472/19 | 19 | 20.0 | 0,13/-0 | 1.10 | 1.5 | 0/-0,06 | 20.5 | 0,42/-0,13 | 4.1 | 2.2 | 2.0 | 0.830 |
| 472/20 | 20 | 21.0 | 0,13/-0 | 1.10 | 1.5 | 0/-0,06 | 21.5 | 0,42/-0,13 | 4.1 | 2.3 | 2.0 | 0.900 |
| 472/21 | 21 | 22.0 | 0,13/-0 | 1.10 | 1.5 | 0/-0,06 | 22.5 | 0,42/-0,13 | 4.2 | 2.4 | 2.0 | 1.000 |
| 472/22 | 22 | 23.0 | 0,13/-0 | 1.10 | 1.5 | 0/-0,06 | 23.5 | 0,42/-0,13 | 4.2 | 2.5 | 2.0 | 1.100 |
| 472/23 | 23 | 24.1 | 0,13/-0 | 1.30 | 1.7 | 0/-0,06 | 24.6 | 0,42/-0,13 | 4.2 | 2.5 | 2.0 | 1.340 |
| 472/24 | 24 | 25.2 | 0,21/-0 | 1.30 | 1.8 | 0/-0,06 | 25.9 | 0,42/-0,21 | 4.3 | 2.6 | 2.0 | 1.420 |
| 472/25 | 25 | 26.2 | 0,21/-0 | 1.30 | 1.8 | 0/-0,06 | 26.9 | 0,42/-0,21 | 4.5 | 2.7 | 2.0 | 1.500 |
| 472/26 | 26 | 27.2 | 0,21/-0 | 1.30 | 1.8 | 0/-0,06 | 27.9 | 0,42/-0,21 | 4.7 | 2.8 | 2.0 | 1.600 |
| 472/27 | 27 | 28.4 | 0,21/-0 | 1.30 | 2.1 | 0/-0,06 | 29.1 | 0,42/-0,21 | 4.7 | 2.9 | 2.0 | 1.750 |
| 472/28 | 28 | 29.4 | 0,21/-0 | 1.30 | 2.1 | 0/-0,06 | 30.1 | 0,50/-0,25 | 4.8 | 2.9 | 2.0 | 1.800 |
| 472/29 | 29 | 30.4 | 0,25/-0 | 1.30 | 2.1 | 0/-0,06 | 31.1 | 0,50/-0,25 | 4.8 | 3.0 | 2.0 | 1.880 |
| 472/30 | 30 | 31.4 | 0,25/-0 | 1.30 | 2.1 | 0/-0,06 | 32.1 | 0,50/-0,25 | 4.8 | 3.0 | 2.0 | 2.060 |
| 472/31 | 31 | 32.7 | 0,25/-0 | 1.30 | 2.6 | 0/-0,06 | 33.4 | 0,50/-0,25 | 5.2 | 3.1 | 2.5 | 2.100 |
| 472/32 | 32 | 33.7 | 0,25/-0 | 1.30 | 2.6 | 0/-0,06 | 34.4 | 0,50/-0,25 | 5.4 | 3.2 | 2.5 | 2.210 |
| 472/33 | 33 | 34.7 | 0,25/-0 | 1.30 | 2.6 | 0/-0,06 | 35.5 | 0,50/-0,25 | 5.4 | 3.3 | 2.5 | 2.400 |
| 472/34 | 34 | 35.7 | 0,25/-0 | 1.60 | 2.6 | 0/-0,06 | 36.5 | 0,50/-0,25 | 5.4 | 3.3 | 2.5 | 3.200 |
| 472/35 | 35 | 37.0 | 0,25/-0 | 1.60 | 3.0 | 0/-0,06 | 37.8 | 0,50/-0,25 | 5.4 | 3.4 | 2.5 | 3.540 |
| 472/36 | 36 | 38.0 | 0,25/-0 | 1.60 | 3.0 | 0/-0,06 | 38.8 | 0,50/-0,25 | 5.4 | 3.5 | 2.5 | 3.700 |
| 472/37 | 37 | 39.0 | 0,25/-0 | 1.60 | 3.0 | 0/-0,06 | 39.8 | 0,50/-0,25 | 5.5 | 3.6 | 2.5 | 3.740 |
| 472/38 | 38 | 40.0 | 0,25/-0 | 1.60 | 3.0 | 0/-0,06 | 40.8 | 0,50/-0,25 | 5.5 | 3.7 | 2.5 | 3.900 |
| 472/39 | 39 | 41.0 | 0,25/-0 | 1.60 | 3.0 | 0/-0,06 | 42.0 | 0,90/-0,39 | 5.6 | 3.8 | 2.5 | 4.000 |
| 472/40 | 40 | 42.5 | 0,25/-0 | 1.85 | 3.8 | 0/-0,06 | 43.5 | 0,90/-0,39 | 5.8 | 3.9 | 2.5 | 4.700 |
| 472/41 | 41 | 43.5 | 0,25/-0 | 1.85 | 3.8 | 0/-0,06 | 44.5 | 0,90/-0,39 | 5.9 | 4.0 | 2.5 | 5.100 |
| 472/42 | 42 | 44.5 | 0,25/-0 | 1.80 | 3.8 | 0/-0,06 | 45.5 | 0,90/-0,39 | 5.9 | 4.1 | 2.5 | 5.400 |
| 472/43 | 43 | 45.5 | 0,25/-0 | 1.85 | 3.8 | 0/-0,06 | 46.5 | 0,90/-0,39 | 5.9 | 4.2 | 2.5 | 5.600 |
| 472/44 | 44 | 46.5 | 0,25/-0 | 1.85 | 3.8 | 0/-0,06 | 47.5 | 0,90/-0,39 | 6.0 | 4.2 | 2.5 | 5.800 |
| 472/45 | 45 | 47.5 | 0,25/-0 | 1.85 | 3.8 | 0/-0,06 | 48.5 | 0,90/-0,39 | 6.2 | 4.3 | 2.5 | 6.000 |
| 472/46 | 46 | 48.5 | 0,25/-0 | 1.85 | 3.8 | 0/-0,06 | 49.5 | 1,10/-0,46 | 6.3 | 4.4 | 2.5 | 6.050 |
| 472/47 | 47 | 49.5 | 0,30/-0 | 1.85 | 3.8 | 0/-0,06 | 50.5 | 1,10/-0,46 | 6.4 | 4.4 | 2.5 | 6.100 |
| 472/48 | 48 | 50.5 | 0,30/-0 | 1.85 | 3.8 | 0/-0,06 | 51.5 | 1,10/-0,46 | 6.4 | 4.5 | 2.5 | 6.700 |
| 472/50 | 50 | 53.0 | 0,30/-0 | 2.15 | 4.5 | 0/-0,06 | 54.2 | 1,10/-0,46 | 6.5 | 4.6 | 2.5 | 7.300 |
| 472/51 | 51 | 54.0 | 0,30/-0 | 2.15 | 4.5 | 0/-0,06 | 55.2 | 1,10/-0,46 | 6.5 | 4.7 | 2.5 | 7.750 |
| 472/52 | 52 | 53.0 | 0,30/-0 | 2.15 | 4.5 | 0/-0,07 | 56.2 | 1,10/-0,46 | 6.7 | 4.7 | 2.5 | 8.200 |
| 472/53 | 53 | 56.0 | 0,30/-0 | 2.15 | 4.5 | 0/-0,07 | 57.2 | 1,10/-0,46 | 6.7 | 4.9 | 2.5 | 8.220 |
| 472/54 | 54 | 57.0 | 0,30/-0 | 2.15 | 4.5 | 0/-0,07 | 58.2 | 1,10/-0,46 | 6.7 | 5.0 | 2.5 | 8.250 |
| 472/55 | 55 | 58.0 | 0,30/-0 | 2.15 | 4.5 | 0/-0,07 | 59.2 | 1,10/-0,46 | 6.8 | 5.0 | 2.5 | 8.300 |
| 472/56 | 56 | 59.0 | 0,30/-0 | 2.15 | 4.5 | 0/-0,07 | 60.2 | 1,10/-0,46 | 6.8 | 5.1 | 2.5 | 8.800 |
| 472/57 | 57 | 60.0 | 0,30/-0 | 2.15 | 4.5 | 0/-0,07 | 61.2 | 1,10/-0,46 | 6.8 | 5.1 | 2.5 | 9.400 |
| 472/58 | 58 | 61.0 | 0,30/-0 | 2.15 | 4.5 | 0/-0,07 | 62.2 | 1,10/-0,46 | 6.9 | 5.2 | 2.5 | 10.500 |
| 472/60 | 60 | 63.0 | 0,30/-0 | 2.15 | 4.5 | 0/-0,07 | 64.2 | 1,10/-0,46 | 7.3 | 5.4 | 2.5 | 11.100 |
| 472/62 | 62 | 65.0 | 0,30/-0 | 2.15 | 4.5 | 0/-0,07 | 66.2 | 1,10/-0,46 | 7.3 | 5.5 | 2.5 | 11.200 |
| 472/63 | 63 | 66.0 | 0,30/-0 | 2.15 | 4.5 | 0/-0,07 | 67.2 | 1,10/-0,46 | 7.3 | 5.6 | 2.5 | 12.400 |
| 472/64 | 64 | 67.0 | 0,30/-0 | 2.15 | 4.5 | 0/-0,07 | 68.2 | 1,10/-0,46 | 7.4 | 5.7 | 2.5 | 12.450 |
| 472/65 | 65 | 68.0 | 0,30/-0 | 2.65 | 4.5 | 0/-0,07 | 69.2 | 1,10/-0,46 | 7.6 | 5.8 | 3.0 | 14.300 |
| 472/67 | 67 | 70.0 | 0,30/-0 | 2.65 | 4.5 | 0/-0,07 | 71.5 | 1,10/-0,46 | 7.7 | 6.0 | 3.0 | 15.300 |
| 472/68 | 68 | 71.0 | 0,30/-0 | 2.65 | 4.5 | 0/-0,07 | 72.5 | 1,10/-0,46 | 7.8 | 6.1 | 3.0 | 16.000 |
| 472/70 | 70 | 73.0 | 0,30/-0 | 2.65 | 4.5 | 0/-0,07 | 74.5 | 1,10/-0,46 | 7.8 | 6.2 | 3.0 | 16.500 |
| 472/72 | 72 | 75.0 | 0,30/-0 | 2.65 | 4.5 | 0/-0,07 | 76.5 | 1,10/-0,46 | 7.8 | 6.4 | 3.0 | 18.100 |
| 472/75 | 75 | 78.0 | 0,30/-0 | 2.65 | 4.5 | 0/-0,07 | 79.5 | 1,10/-0,46 | 7.8 | 6.6 | 3.0 | 18.800 |
| 472/77 | 77 | 80.0 | 0,35/-0 | 2.65 | 4.5 | 0/-0,07 | 82.5 | 1,30/-0,54 | 8.5 | 6.8 | 3.0 | 20.400 |
| 472/78 | 78 | 81.0 | 0,35/-0 | 2.65 | 4.5 | 0/-0,07 | 82.5 | 1,30/-0,54 | 8.5 | 6.8 | 3.0 | 20.400 |
| 472/80 | 80 | 83.5 | 0,35/-0 | 2.65 | 5.3 | 0/-0,07 | 85.5 | 1,30/-0,54 | 8.5 | 7.0 | 3.0 | 22.000 |
| 472/82 | 82 | 85.5 | 0,35/-0 | 2.65 | 5.3 | 0/-0,07 | 87.5 | 1,30/-0,54 | 8.5 | 7.0 | 3.0 | 24.000 |
| 472/85 | 85 | 88.5 | 0,35/-0 | 3.15 | 5.3 | 0/-0,07 | 90.5 | 1,30/-0,54 | 8.6 | 7.2 | 3.5 | 25.300 |
| 472/87 | 87 | 90.5 | 0,35/-0 | 3.15 | 5.3 | 0/-0,08 | 93.5 | 1,30/-0,54 | 8.6 | 7.4 | 3.5 | 31.000 |
| 472/88 | 88 | 91.5 | 0,35/-0 | 3.15 | 5.3 | 0/-0,08 | 93.5 | 1,30/-0,54 | 8.6 | 7.4 | 3.5 | 31.000 |
| 472/90 | 90 | 93.5 | 0,35/-0 | 3.15 | 5.3 | 0/-0,08 | 95.5 | 1,30/-0,54 | 8.6 | 7.6 | 3.5 | 33.000 |
| 472/92 | 92 | 95.5 | 0,35/-0 | 3.15 | 5.3 | 0/-0,08 | 97.5 | 1,30/-0,54 | 8.7 | 7.8 | 3.5 | 35.000 |
| 472/95 | 95 | 98.5 | 0,35/-0 | 3.15 | 5.3 | 0/-0,08 | 100.5 | 1,30/-0,54 | 8.8 | 8.1 | 3.5 | 37.000 |
| 472/97 | 97 | 100.5 | 0,35/-0 | 3.15 | 5.3 | 0/-0,08 | 103.5 | 1,30/-0,54 | 9.0 | 8.3 | 3.5 | 41.000 |
| 472/98 | 98 | 101.5 | 0,35/-0 | 3.15 | 5.3 | 0/-0,08 | 103.5 | 1,30/-0,54 | 9.0 | 8.3 | 3.5 | 41.000 |
| 472/100 | 100 | 103.5 | 0,35/-0 | 3.15 | 5.3 | 0/-0,08 | 105.5 | 1,30/-0,54 | 9.2 | 8.4 | 3.5 | 42.000 |
| 472/102 | 102 | 106.0 | 0,54/-0 | 4.15 | 6.0 | 0/-0,10 | 108.0 | 1,30/-0,54 | 9.5 | 8.5 | 3.5 | 55.000 |
| 472/105 | 105 | 109.0 | 0,54/-0 | 4.15 | 6.0 | 0/-0,10 | 112.0 | 1,30/-0,54 | 9.5 | 8.7 | 3.5 | 56.000 |
| 472/107 | 107 | 111.0 | 0,54/-0 | 4.15 | 6.0 | 0/-0,10 | 114.0 | 1,30/-0,54 | 9.5 | 8.9 | 3.5 | 60.000 |
| 472/108 | 108 | 112.0 | 0,54/-0 | 4.15 | 6.0 | 0/-0,10 | 115.0 | 1,30/-0,54 | 9.5 | 8.9 | 3.5 | 60.000 |
| 472/110 | 110 | 114.0 | 0,54/-0 | 4.15 | 6.0 | 0/-0,10 | 117.0 | 1,30/-0,54 | 10.4 | 9.0 | 3.5 | 64.500 |
| 472/112 | 112 | 116.0 | 0,54/-0 | 4.15 | 6.0 | 0/-0,10 | 119.0 | 1,30/-0,54 | 10.5 | 9.1 | 3.5 | 72.000 |
| 472/115 | 115 | 119.0 | 0,54/-0 | 4.15 | 6.0 | 0/-0,10 | 122.0 | 1,50/-0,63 | 10.5 | 9.3 | 3.5 | 74.500 |
| 472/117 | 117 | 121.0 | 0,63/-0 | 4.15 | 6.0 | 0/-0,10 | 124.0 | 1,50/-0,63 | 10.7 | 9.6 | 3.5 | 75.000 |
| 472/118 | 118 | 122.0 | 0,63/-0 | 4.15 | 6.0 | 0/-0,10 | 125.0 | 1,50/-0,63 | 10.7 | 9.6 | 3.5 | 75.500 |
| 472/120 | 120 | 124.0 | 0,63/-0 | 4.15 | 6.0 | 0/-0,10 | 127.0 | 1,50/-0,63 | 11.0 | 9.7 | 3.5 | 77.000 |
| 472/122 | 122 | 126.0 | 0,63/-0 | 4.15 | 6.0 | 0/-0,10 | 129.0 | 1,50/-0,63 | 11.0 | 9.8 | 4.0 | 78.000 |
| 472/125 | 125 | 129.0 | 0,63/-0 | 4.15 | 6.0 | 0/-0,10 | 132.0 | 1,50/-0,63 | 11.0 | 10.0 | 4.0 | 79.000 |
| 472/127 | 127 | 131.0 | 0,63/-0 | 4.15 | 6.0 | 0/-0,10 | 134.0 | 1,50/-0,63 | 11.0 | 10.0 | 4.0 | 81.000 |
| 472/128 | 128 | 132.0 | 0,63/-0 | 4.15 | 6.0 | 0/-0,10 | 135.0 | 1,50/-0,63 | 11.0 | 10.2 | 4.0 | 81.000 |
| 472/130 | 130 | 134.0 | 0,63/-0 | 4.15 | 6.0 | 0/-0,10 | 137.0 | 1,50/-0,63 | 11.0 | 10.2 | 4.0 | 82.000 |
| 472/132 | 132 | 136.0 | 0,63/-0 | 4.15 | 6.0 | 0/-0,10 | 139.0 | 1,50/-0,63 | 11.0 | 10.3 | 4.0 | 83.000 |
| 472/135 | 135 | 139.0 | 0,63/-0 | 4.15 | 6.0 | 0/-0,10 | 142.0 | 1,50/-0,63 | 11.2 | 10.5 | 4.0 | 84.000 |
| 472/137 | 137 | 141.0 | 0,63/-0 | 4.15 | 6.0 | 0/-0,10 | 145.0 | 1,50/-0,63 | 11.2 | 10.6 | 4.0 | 86.000 |
| 472/138 | 138 | 142.0 | 0,63/-0 | 4.15 | 6.0 | 0/-0,10 | 145.0 | 1,50/-0,63 | 11.2 | 10.6 | 4.0 | 86.000 |
| 472/140 | 140 | 144.0 | 0,63/-0 | 4.15 | 6.0 | 0/-0,10 | 147.0 | 1,50/-0,63 | 11.2 | 10.7 | 4.0 | 87.500 |
| 472/142 | 142 | 146.0 | 0,63/-0 | 4.15 | 6.0 | 0/-0,10 | 149.0 | 1,50/-0,63 | 11.3 | 10.8 | 4.0 | 89.000 |
| 472/145 | 145 | 149.0 | 0,63/-0 | 4.15 | 6.0 | 0/-0,10 | 152.0 | 1,50/-0,63 | 11.4 | 10.9 | 4.0 | 93.000 |
| 472/147 | 151 | 151.0 | 0,63/-0 | 4.15 | 6.0 | 0/-0,10 | 155.0 | 1,50/-0,63 | 11.8 | 11.0 | 4.0 | 100.000 |
| 472/148 | 148 | 152.0 | 0,63/-0 | 4.15 | 6.0 | 0/-0,10 | 155.0 | 1,50/-0,63 | 11.8 | 11.0 | 4.0 | 100.000 |
| 472/150 | 150 | 155.0 | 0,63/-0 | 4.15 | 7.5 | 0/-0,10 | 158.0 | 1,50/-0,63 | 12.0 | 11.2 | 4.0 | 105.000 |
| 472/155 | 155 | 160.0 | 0,63/-0 | 4.15 | 7.5 | 0/-0,10 | 164.0 | 1,50/-0,63 | 12.0 | 11.4 | 4.0 | 107.000 |
| 472/160 | 160 | 165.0 | 0,63/-0 | 4.15 | 7.5 | 0/-0,10 | 169.0 | 1,50/-0,63 | 13.0 | 11.6 | 4.0 | 110.000 |
| 472/165 | 165 | 170.0 | 0,63/-0 | 4.15 | 7.5 | 0/-0,10 | 174.5 | 1,50/-0,63 | 13.0 | 11.8 | 4.0 | 125.000 |
| 472/170 | 170 | 175.0 | 0,63/-0 | 4.15 | 7.5 | 0/-0,10 | 179.5 | 1,50/-0,63 | 13.5 | 12.2 | 4.0 | 140.000 |
| 472/175 | 175 | 180.0 | 0,63/-0 | 4.15 | 7.5 | 0/-0,10 | 184.5 | 1,70/-0,72 | 13.5 | 12.7 | 4.0 | 150.000 |
| 472/180 | 180 | 185.0 | 0,72/-0 | 4.15 | 7.5 | 0/-0,10 | 189.5 | 1,70/-0,72 | 14.2 | 13.2 | 4.0 | 165.000 |
| 472/185 | 185 | 190.0 | 0,72/-0 | 4.15 | 7.5 | 0/-0,10 | 194.5 | 1,70/-0,72 | 14.2 | 13.7 | 4.0 | 170.000 |
| 472/190 | 190 | 195.0 | 0,72/-0 | 4.15 | 7.5 | 0/-0,10 | 199.5 | 1,70/-0,72 | 14.2 | 13.8 | 4.0 | 175.000 |
| 472/195 | 195 | 200.0 | 0,72/-0 | 4.15 | 7.5 | 0/-0,10 | 204.5 | 1,70/-0,72 | 14.2 | 13.8 | 4.0 | 183.000 |
| 472/200 | 200 | 205.0 | 0,72/-0 | 4.15 | 7.5 | 0/-0,10 | 209.5 | 1,70/-0,72 | 14.2 | 14.0 | 4.0 | 195.000 |
| 472/205 | 205 | 211.0 | 0,72/-0 | 5.15 | 9.0 | 0/-0,12 | 217.0 | 1,70/-0,72 | 14.2 | 14.0 | 4.0 | 225.000 |
| 472/210 | 210 | 216.0 | 0,72/-0 | 5.15 | 9.0 | 0/-0,12 | 222.0 | 1,70/-0,72 | 14.2 | 14.0 | 4.0 | 270.000 |
| 472/215 | 215 | 221.0 | 0,72/-0 | 5.15 | 9.0 | 0/-0,12 | 227.0 | 14.2 | 14.0 | 4.0 | 300.000 | |
| 472/220 | 220 | 226.0 | 0,72/-0 | 5.15 | 9.0 | 0/-0,12 | 232.0 | 14.2 | 14.0 | 4.0 | 315.000 | |
| 472/225 | 225 | 231.0 | 0,72/-0 | 5.15 | 9.0 | 0/-0,12 | 237.0 | 14.2 | 14.0 | 4.0 | 323.000 | |
| 472/230 | 230 | 236.0 | 0,72/-0 | 5.15 | 9.0 | 0/-0,12 | 242.0 | 14.2 | 14.0 | 4.0 | 330.000 | |
| 472/235 | 235 | 241.0 | 0,72/-0 | 5.15 | 9.0 | 0/-0,12 | 247.0 | 14.2 | 14.0 | 4.0 | 338.000 | |
| 472/240 | 240 | 246.0 | 0,72/-0 | 5.15 | 9.0 | 0/-0,12 | 252.0 | 14.2 | 14.0 | 4.0 | 345.000 | |
| 472/245 | 245 | 251.0 | 0,81/-0 | 5.15 | 9.0 | 0/-0,12 | 257.0 | 14.2 | 14.0 | 4.0 | 353.000 | |
| 472/250 | 250 | 256.0 | 0,81/-0 | 5.15 | 9.0 | 0/-0,12 | 262.0 | 14.2 | 14.0 | 4.0 | 360.000 | |
| 472/255 | 255 | 263.0 | 0,81/-0 | 5.15 | 12.0 | 0/-0,12 | 270.0 | 16.2 | 16.0 | 5.0 | 368.000 | |
| 472/260 | 260 | 268.0 | 0,81/-0 | 5.15 | 12.0 | 0/-0,12 | 275.0 | 16.2 | 16.0 | 5.0 | 375.000 | |
| 472/265 | 265 | 273.0 | 0,81/-0 | 5.15 | 12.0 | 0/-0,12 | 280.0 | 16.2 | 16.0 | 5.0 | 383.000 | |
| 472/270 | 270 | 278.0 | 0,81/-0 | 5.15 | 12.0 | 0/-0,12 | 285.0 | 16.2 | 16.0 | 5.0 | 388.000 | |
| 472/275 | 275 | 283.0 | 0,81/-0 | 5.15 | 12.0 | 0/-0,12 | 290.0 | 16.2 | 16.0 | 5.0 | 393.000 | |
| 472/280 | 280 | 288.0 | 0,81/-0 | 5.15 | 12.0 | 0/-0,12 | 295.0 | 16.2 | 16.0 | 5.0 | 400.000 | |
| 472/285 | 285 | 293.0 | 0,81/-0 | 5.15 | 12.0 | 0/-0,12 | 300.0 | 16.2 | 16.0 | 5.0 | 408.000 | |
| 472/290 | 290 | 298.0 | 0,81/-0 | 5.15 | 12.0 | 0/-0,12 | 305.0 | 16.2 | 16.0 | 5.0 | 415.000 | |
| 472/295 | 295 | 303.0 | 0,81/-0 | 5.15 | 12.0 | 0/-0,12 | 310.0 | 16.2 | 16.0 | 5.0 | 426.000 | |
| 472/300 | 300 | 308.0 | 0,81/-0 | 5.15 | 12.0 | 0/-0,12 | 315.0 | 16.2 | 16.0 | 5.0 | 435.000 | |
| 472/310 | 310 | 320.0 | 0,89/-0 | 6.20 | 15.0 | 0/-0,15 | 327.0 | 20.0 | 6.0 | 770.000 | ||
| 472/315 | 315 | 325.0 | 0,89/-0 | 6.20 | 15.0 | 0/-0,15 | 332.0 | 20.0 | 6.0 | 785.000 | ||
| 472/320 | 320 | 330.0 | 0,89/-0 | 6.20 | 15.0 | 0/-0,15 | 337.0 | 20.0 | 6.0 | 800.000 | ||
| 472/325 | 325 | 335.0 | 0,89/-0 | 6.20 | 15.0 | 0/-0,15 | 342.0 | 20.0 | 6.0 | 810.000 | ||
| 472/330 | 330 | 340.0 | 0,89/-0 | 6.20 | 15.0 | 0/-0,15 | 347.0 | 20.0 | 6.0 | 820.000 | ||
| 472/340 | 340 | 350.0 | 0,89/-0 | 6.20 | 15.0 | 0/-0,15 | 357.0 | 20.0 | 6.0 | 840.000 | ||
| 472/350 | 350 | 360.0 | 0,89/-0 | 6.20 | 15.0 | 0/-0,15 | 367.0 | 20.0 | 6.0 | 870.000 | ||
| 472/360 | 360 | 370.0 | 0,89/-0 | 6.20 | 15.0 | 0/-0,15 | 377.0 | 20.0 | 6.0 | 890.000 | ||
| 472/370 | 370 | 380.0 | 0,89/-0 | 6.20 | 15.0 | 0/-0,15 | 378.0 | 20.0 | 6.0 | 920.000 | ||
| 472/380 | 380 | 390.0 | 0,89/-0 | 6.20 | 15.0 | 0/-0,15 | 397.0 | 20.0 | 6.0 | 940.000 | ||
| 472/390 | 390 | 400.0 | 0,89/-0 | 6.20 | 15.0 | 0/-0,15 | 407.0 | 2,00/-1,00 | 20.0 | 6.0 | 960.000 | |
| 472/400 | 400 | 410.0 | 0,89/-0 | 6.20 | 15.0 | 0/-0,15 | 417.0 | 2,00/-1,00 | 20.0 | 6.0 | 980.000 | |
| 472/410 | 410 | 422.0 | 1,00/-0 | 7.20 | 18.0 | 0/-0,15 | 430.0 | 2,00/-1,00 | 26.0 | 6.0 | 1380.000 | |
| 472/420 | 420 | 432.0 | 1,00/-0 | 7.20 | 18.0 | 0/-0,15 | 440.0 | 2,00/-1,00 | 26.0 | 6.0 | 1410.000 | |
| 472/430 | 430 | 442.0 | 1,00/-0 | 7.20 | 18.0 | 0/-0,15 | 450.0 | 2,00/-1,00 | 26.0 | 6.0 | 1440.000 | |
| 472/440 | 440 | 452.0 | 1,00/-0 | 7.20 | 18.0 | 0/-0,15 | 460.0 | 2,00/-1,00 | 26.0 | 6.0 | 1470.000 | |
| 472/450 | 450 | 462.0 | 1,00/-0 | 7.20 | 18.0 | 0/-0,15 | 470.0 | 2,00/-1,00 | 26.0 | 6.0 | 1510.000 | |
| 472/460 | 460 | 472.0 | 1,00/-0 | 7.20 | 18.0 | 0/-0,15 | 480.0 | 2,00/-1,00 | 26.0 | 6.0 | 1550.000 | |
| 472/470 | 470 | 482.0 | 1,00/-0 | 7.20 | 18.0 | 0/-0,15 | 490.0 | 2,00/-1,00 | 26.0 | 6.0 | 1595.000 | |
| 472/480 | 480 | 492.0 | 1,00/-0 | 7.20 | 18.0 | 0/-0,15 | 500.0 | 2,00/-1,00 | 26.0 | 6.0 | 1640.000 | |
| 472/490 | 490 | 502.0 | 1,00/-0 | 7.20 | 18.0 | 0/-0,15 | 510.0 | 3,00/-1,50 | 26.0 | 6.0 | 1685.000 | |
| 472/500 | 500 | 502.0 | 1,00/-0 | 7.20 | 18.0 | 0/-0,15 | 510.0 | 3,00/-1,50 | 26.0 | 6.0 | 1730.000 |
