Fleyer Zincir Dın8187

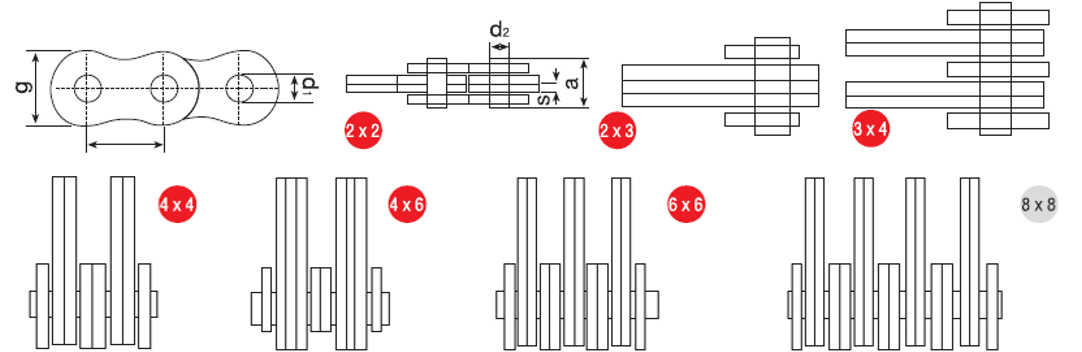

| TİP | p (mm) | d1 min. (mm) | d2 mak. (mm) | g mak. (mm) | s (mm) | a max (mm) | Zincir Çekme Kuvveti | Zincir Kopma Yükü | Zincir Ağırlığı Kg/m |
|---|---|---|---|---|---|---|---|---|---|
| TİP | p (mm) | d1 min. (mm) | d2 mak. (mm) | g mak. (mm) | s (mm) | a max (mm) | Zincir Çekme Kuvveti | Zincir Kopma Yükü | Zincir Ağırlığı Kg/m |
| LH 08 - 22 | 12.7 | 5.12 | 5.09 | 12.1 | 2 | 11 | 0.2 | 22200 | 0.64 |
| LH 08 - 23 | 13.1 | 0.3 | 22200 | 0.8 | |||||
| LH 08 - 34 | 17.4 | 0.41 | 33300 | 1.12 | |||||
| LH 08 - 44 | 19.5 | 0.41 | 44400 | 1.28 | |||||
| LH 08 - 46 | 23.8 | 0.61 | 44400 | 1.6 | |||||
| LH 08 - 66 | 28 | 0.61 | 66600 | 1.92 | |||||
| LH 08 - 88 | 36.4 | 0.81 | 88800 | 2.56 | |||||
| LH 10 - 22 | 15.875 | 5.98 | 5.96 | 15.1 | 2.4 | 12.9 | 0.28 | 33400 | 0.88 |
| LH 10 - 23 | 15.3 | 0.43 | 33400 | 1.1 | |||||
| LH 10 - 34 | 20.3 | 0.57 | 50100 | 1.5 | |||||
| LH 10 - 44 | 22.7 | 0.57 | 66800 | 1.8 | |||||
| LH 10 - 46 | 27.7 | 0.86 | 66800 | 2.2 | |||||
| LH 10 - 66 | 32.1 | 0.86 | 100200 | 2.65 | |||||
| LH 10 - 88 | 42.5 | 1.14 | 133600 | 3.5 | |||||
| LH 12 - 22 | 19.05 | 7.96 | 7.94 | 18.1 | 3.2 | 17.3 | 0.51 | 48900 | 1.45 |
| LH 12 - 23 | 20.7 | 0.76 | 48900 | 1.8 | |||||
| LH 12 - 34 | 27.4 | 1.01 | 73400 | 2.5 | |||||
| LH 12 - 44 | 30.7 | 1.01 | 97800 | 2.9 | |||||
| LH 12 - 46 | 37.4 | 1.52 | 97800 | 3.6 | |||||
| LH 12 - 66 | 44.2 | 1.52 | 146800 | 4.3 | |||||
| LH 12 - 88 | 57.6 | 2.03 | 195600 | 5.8 | |||||
| LH 16 - 22 | 25.4 | 9.56 | 9.54 | 24.1 | 3.9 | 21.3 | 054 | 84500 | 2.2 |
| LH 16 - 23 | 25.4 | 1.11 | 84500 | 2.7 | |||||
| LH 16 - 34 | 33.7 | 1.49 | 126800 | 3.8 | |||||
| LH 16 - 44 | 37.9 | 1.49 | 169000 | 4.3 | |||||
| LH 16 - 46 | 46.1 | 2.23 | 169000 | 5.4 | |||||
| LH 16 - 66 | 54.4 | 2.23 | 253600 | 6.5 | |||||
| LH 16 - 88 | 71 | 2.97 | 338000 | 8.6 | |||||
| LH 20 - 22 | 31.75 | 11.14 | 11.11 | 30.2 | 4.7 | 25.3 | 1.04 | 115600 | 3.4 |
| LH 20 - 23 | 30.3 | 1.56 | 115600 | 4.3 | |||||
| LH 20 - 34 | 40.2 | 2.09 | 173400 | 6 | |||||
| LH 20 - 44 | 45.1 | 2.09 | 231200 | 6.9 | |||||
| LH 20 - 46 | 55 | 3.13 | 231200 | 8.6 | |||||
| LH 20 - 66 | 65 | 3.13 | 346800 | 10.3 | |||||
| LH 20 - 88 | 84.8 | 4.17 | 462400 | 13.8 | |||||
| LH 24 - 22 | 38.1 | 12.71 | 12.71 | 36.2 | 5.5 | 29.6 | 1.4 | 151200 | 4.6 |
| LH 24 - 23 | 35.4 | 2.1 | 151200 | 5.8 | |||||
| LH 24 - 34 | 47 | 2.79 | 226800 | 8.1 | |||||
| LH 24 - 44 | 52.8 | 2.79 | 302400 | 9.3 | |||||
| LH 24 - 46 | 64.5 | 4.19 | 302400 | 11.6 | |||||
| LH 24 - 66 | 76.1 | 4.19 | 450600 | 13.9 | |||||
| LH 24 - 88 | 99.4 | 5.59 | 604800 | 18.6 | |||||
| LH 28 - 22 | 44.45 | 14.29 | 14.29 | 42.2 | 6.3 | 33.5 | 1.8 | 191300 | 6.1 |
| LH 28 - 23 | 40.1 | 2.7 | 191300 | 7.6 | |||||
| LH 28 - 34 | 53.3 | 3.6 | 287000 | 10.6 | |||||
| LH 28 - 44 | 59.5 | 3.6 | 382600 | 12.2 | |||||
| LH 28 - 46 | 73.1 | 5.4 | 382600 | 15.2 | |||||
| LH 28 - 66 | 86.3 | 5.4 | 574000 | 18.2 | |||||
| LH 28 - 88 | 112.3 | 7.2 | 765200 | 24.3 | |||||
| LH 32 - 22 | 50.8 | 17.49 | 17.46 | 48.3 | 7.1 | 39 | 2.48 | 289100 | 3 |
| LH 32 - 23 | 46.5 | 3.72 | 289100 | 10 | |||||
| LH 32 - 34 | 61.7 | 4.96 | 433700 | 14 | |||||
| LH 32 - 44 | 69.2 | 4.96 | 578200 | 16 | |||||
| LH 32 - 46 | 84.4 | 7.44 | 578200 | 20 | |||||
| LH 32 - 66 | 99.5 | 7.44 | 867400 | 24 | |||||
| LH 32 - 88 | 129.8 | 9.92 | 1156400 | 32 | |||||
| LH 40 - 22 | 63.5 | 23.84 | 23.81 | 60.3 | 9.5 | 51.7 | 4.52 | 433700 | 3 |
| LH 40 - 23 | 61.7 | 6.78 | 433700 | 10 | |||||
| LH 40 - 34 | 81.6 | 9.05 | 650600 | 14 | |||||
| LH 40 - 44 | 91.5 | 9.05 | 867400 | 16 | |||||
| LH 40 - 46 | 111.4 | 13.57 | 867400 | 20 | |||||
| LH 40 - 66 | 131.3 | 13.57 | 1301200 | 24 | |||||
| LH 40 - 88 | 171.2 | 18.1 | 1734800 | 32 | |||||
| AL 422 | 12.7 | 3.98 | 3.96 | 12 | 1.5 | 8.1 | 0.12 | 14100 | 0.35 |
| AL 444 | 14.5 | 0.23 | 28200 | 0.67 | |||||
| AL 466 | 20.9 | 0.35 | 42300 | 1 | |||||
| AL 522 | 15.875 | 5.1 | 5.08 | 15 | 2 | 10.5 | 0.2 | 22000 | 0.63 |
| AL 544 | 18.7 | 0.4 | 44000 | 1.2 | |||||
| AL 586 | 27.1 | 0.6 | 66000 | 1.75 | |||||
| AL 622 | 19.05 | 5.978 | 5.94 | 18 | 2.35 | 12.6 | 0.28 | 37000 | 0.93 |
| AL 644 | 22.5 | 0.57 | 63600 | 1.6 | |||||
| AL 666 | 32 | 0.85 | 95400 | 2.5 | |||||
| AL 822 | 25.4 | 7.92 | 7.92 | 24.1 | 3.1 | 17 | 0.5 | 84520 | 1.6 |
| AL 844 | 30.8 | 1.01 | 113400 | 3.3 | |||||
| AL 866 | 44.4 | 1.52 | 170000 | 4.9 | |||||
| AL 1022 | 31.75 | 9.55 | 9.53 | 30.1 | 3.9 | 20.6 | 0.76 | 115650 | 2.4 |
| AL 1044 | 37.3 | 1.52 | 177000 | 4.9 | |||||
| AL 1066 | 54 | 2.29 | 265500 | 7.3 | |||||
| AL 1222 | 38.1 | 11.12 | 11.1 | 36.2 | 4.7 | 24.2 | 1.05 | 151240 | 3.5 |
| AL 1244 | 44.2 | 2.1 | 302470 | 7 | |||||
| AL 1266 | 63.3 | 3.12 | 381270 | 10.5 | |||||
| AL 1422 | 44.45 | 12.72 | 12.7 | 42.2 | 5.6 | 27.8 | 1.4 | 191270 | 4.33 |
| AL 1444 | 51.1 | 2.8 | 382530 | 8.66 | |||||
| AL 1466 | 74.5 | 4.2 | 558000 | 13 | |||||
| AL 1622 | 50.8 | 14.3 | 14.27 | 48.2 | 6.35 | 31.8 | 1.8 | 214000 | 6 |
| AL 1644 | 58.4 | 3.6 | 428000 | 12 | |||||
| AL 1666 | 85 | 5.39 | 642000 | 18 | |||||
| LL 08-22 | 12.7 | 4.46 | 4.45 | 10.9 | 1.6 | 9.2 | 0.14 | 18200 | 0.4 |
| LL 08-44 | 16 | 0.28 | 36400 | 0.8 | |||||
| LL 08-66 | 22.8 | 0.42 | 54600 | 1.2 | |||||
| LL 10-22 | 15.875 | 5.09 | 5.08 | 13.7 | 1.6 | 9.3 | 0.16 | 22700 | 0.5 |
| LL 10-44 | 16.1 | 0.32 | 45400 | 1 | |||||
| LL 10-66 | 22.9 | 0.48 | 68100 | 1.5 | |||||
| LL 12-22 | 19.05 | 5.73 | 5.72 | 16.1 | 1.8 | 10.7 | 0.2 | 29500 | 0.7 |
| LL 12-44 | 18.5 | 0.4 | 59000 | 1.3 | |||||
| LL 12-66 | 26.3 | 0.6 | 88500 | 2 | |||||
| LL 16-22 | 25.4 | 8.29 | 8.28 | 21.1 | 3 | 17.2 | 0.5 | 58000 | 1.5 |
| LL 16-44 | 30.2 | 1 | 116000 | 3 | |||||
| LL 16-66 | 43.2 | 1.5 | 174000 | 4.4 | |||||
| LL 20-22 | 31.75 | 10.2 | 10.19 | 26.4 | 3.5 | 20.1 | 0.71 | 95000 | 2.3 |
| LL 20-44 | 35.1 | 1.42 | 190000 | 4.4 | |||||
| LL 20-66 | 50.1 | 2.13 | 285000 | 6.6 | |||||
| LL 24-22 | 38.1 | 14.65 | 14.63 | 33.4 | 5 | 28.4 | 1.46 | 170000 | 4.4 |
| LL 24-44 | 49.4 | 2.92 | 340000 | 8.5 | |||||
| LL 24-66 | 70.4 | 4.38 | 510000 | 12.5 | |||||
| LL 28-22 | 44.45 | 15.92 | 15.9 | 37.1 | 6 | 34 | 1.9 | 200000 | 5.4 |
| LL 28-44 | 60 | 3.81 | 400000 | 10.5 | |||||
| LL 28-66 | 86 | 5.7 | 600000 | 15.5 | |||||
| LL 32-22 | 50.8 | 17.83 | 17.81 | 42.3 | 6.3 | 35 | 2.24 | 260000 | 6.2 |
| LL 32-44 | 61 | 4.48 | 520000 | 12.1 | |||||
| LL 32-66 | 87 | 6.72 | 780000 | 18 | |||||
| LL 40-22 | 63.5 | 22.91 | 22.89 | 53 | 8 | 44.7 | 3.66 | 360000 | 10.3 |
| LL 40-44 | 77.9 | 7.32 | 720000 | 20 | |||||
| LL 40-66 | 111.1 | 10.98 | 1080000 | 29.5 | |||||
| LL 48-22 | 76.2 | 29.26 | 29.24 | 63.9 | 10 | 56.1 | 5.85 | 560000 | 18.5 |
| LL 48-44 | 97.4 | 11.7 | 1120000 | 35.7 | |||||
| LL 48-66 | 138.9 | 17.55 | 1680000 | 53 |
