KB Serisi Lineer Rulmanlar

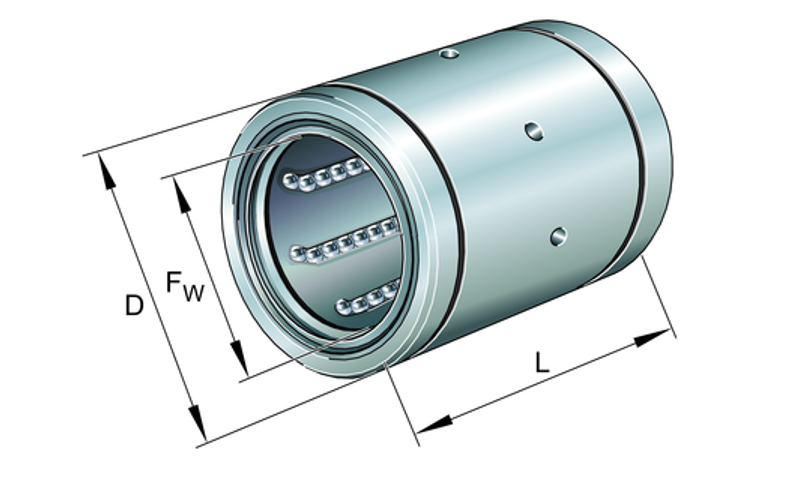

| Ürün Kodu | L (mm) | Fw (mm) | D (mm) | C (N) | C0 (N) |
|---|---|---|---|---|---|
| Ürün Kodu | L (mm) | Fw (mm) | D (mm) | C (N) | C0 (N) |
| KB12 | 32.00 | 12.00 | 22.00 | 640 | 570 |
| KB12-PP | 32.00 | 12.00 | 22.00 | 640 | 570 |
| KB12-PP-AS | 32.00 | 12.00 | 22.00 | 640 | 570 |
| KB16 | 36.00 | 16.00 | 26.00 | 840 | 780 |
| KB16-PP | 36.00 | 16.00 | 26.00 | 840 | 780 |
| KB16-PP-AS | 36.00 | 16.00 | 26.00 | 840 | 780 |
| KB20 | 45.00 | 20.00 | 32.00 | 1660 | 1570 |
| KB20-PP | 45.00 | 20.00 | 32.00 | 1660 | 1570 |
| KB20-PP-AS | 45.00 | 20.00 | 32.00 | 1660 | 1570 |
| KB25 | 58.00 | 25.00 | 40.00 | 2950 | 2850 |
| KB25-PP | 58.00 | 25.00 | 40.00 | 2950 | 2850 |
| KB25-PP-AS | 58.00 | 25.00 | 40.00 | 2950 | 2850 |
| KB30 | 68.00 | 30.00 | 47.00 | 3800 | 3600 |
| KB30-PP | 68.00 | 30.00 | 47.00 | 3800 | 3600 |
| KB30-PP-AS | 68.00 | 30.00 | 47.00 | 3800 | 3600 |
| KB40 | 80.00 | 40.00 | 62.00 | 6400 | 5600 |
| KB40-PP | 80.00 | 40.00 | 62.00 | 6400 | 5600 |
| KB40-PP-AS | 80.00 | 40.00 | 62.00 | 6400 | 5600 |
| KB50 | 100.00 | 50.00 | 75.00 | 9200 | 8000 |
| KB50-PP | 100.00 | 50.00 | 75.00 | 9200 | 8000 |
| KB50-PP-AS | 100.00 | 50.00 | 75.00 | 9200 | 8000 |
