| Şaft Çapı Ölçü Aralığı |
|
Menu

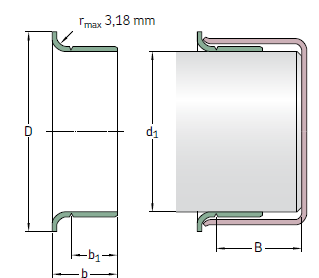

Standart Tip Şaft Tamir Burçları
| TİP | d1 (mm)(min) | d1 (mm)(max) | d1 | D (mm) ±1,6 | b1 (mm)(±0,8) | b (mm)(±0,8) | B |
|---|---|---|---|---|---|---|---|
| TİP | d1 (mm)(min) | d1 (mm)(max) | d1 | D (mm) ±1,6 | b1 (mm)(±0,8) | b (mm)(±0,8) | B |
| 99049 | 11.99 | 12.07 | 11.99 | 15.49 | 5.99 | 8.41 | 47.63 |
| 99050 | 12.65 | 12.75 | 12.70 | 15.49 | 6.35 | 8.74 | 50.80 |
| 99055 | 13.89 | 14.00 | 14.00 | 19.05 | 6.35 | 9.93 | 46.51 |
| 99056 | 14.22 | 14.38 | 14.30 | 19.05 | 6.35 | 9.93 | 46.51 |
| 99059 | 14.96 | 15.06 | 15.01 | 19.05 | 5.00 | 8.99 | 47.29 |
| 99810 | 15.82 | 15.93 | 15.88 | 19.05 | 7.95 | 10.31 | 50.80 |
| 99062 | 15.88 | 19.05 | 7.95 | 10.31 | 50.80 | ||
| 99058 | 15.90 | 16.00 | 16.00 | 18.24 | 7.95 | 11.13 | 50.80 |
| 99068 | 16.94 | 17.04 | 16.99 | 22.23 | 8.00 | 11.00 | 50.80 |
| 99060 | 17.32 | 17.42 | 17.37 | 22.86 | 7.95 | 11.13 | 50.80 |
| 99082 | 17.88 | 18.01 | 18.01 | 24.43 | 8.00 | 11.00 | 46.00 |
| 99811 | 19.00 | 19.10 | 19.05 | 24.00 | 7.95 | 11.13 | 50.80 |
| 99076 | 19.05 | 24.00 | 7.95 | 11.13 | 50.80 | ||
| 99081 | 19.28 | 19.33 | 19.30 | 23.83 | 7.95 | 11.13 | 50.80 |
| 99080 | 19.81 | 19.91 | 19.84 | 23.75 | 7.95 | 11.13 | 50.80 |
| 99078 | 19.94 | 20.04 | 19.99 | 23.62 | 8.00 | 11.00 | 50.80 |
| 99083 | 20.62 | 20.70 | 20.65 | 30.18 | 9.53 | 14.30 | 76.20 |
| 99086 | 21.77 | 21.87 | 21.82 | 29.34 | 6.35 | 9.53 | 50.80 |
| 99084 | 21.87 | 22.00 | 22.00 | 30.18 | 6.58 | 9.12 | 47.14 |
| 99085 | 22.00 | 30.18 | 8.00 | 11.99 | 46.02 | ||
| 99812 | 22.17 | 22.28 | 22.23 | 27.79 | 7.95 | 11.13 | 50.80 |
| 99087 | 22.23 | 27.79 | 7.95 | 11.13 | 50.80 | ||
| 99860 | 23.06 | 23.16 | 23.11 | 30.94 | 7.95 | 11.13 | 46.91 |
| 99091 | 23.11 | 30.94 | 7.95 | 11.13 | 46.91 | ||
| 99092 | 23.88 | 24.00 | 24.00 | 28.70 | 7.95 | 11.13 | 50.80 |
| 99094 | 24.54 | 24.64 | 24.61 | 28.70 | 7.95 | 11.13 | 50.80 |
| 99096 | 24.61 | 28.70 | 15.88 | 18.26 | 50.80 | ||
| 99813 | 24.94 | 25.04 | 24.99 | 33.02 | 7.95 | 11.00 | 50.80 |
| 99098 | 24.99 | 33.02 | 7.95 | 11.00 | 50.80 | ||
| 99814 | 25.35 | 25.45 | 25.40 | 30.96 | 7.95 | 11.13 | 50.80 |
| 99868 | 25.40 | 30.96 | 7.95 | 11.13 | 50.80 | ||
| 99103 | 25.88 | 26.01 | 26.01 | 33.35 | 8.00 | 11.99 | 46.05 |
| 99815 | 26.92 | 27.03 | 27.00 | 33.53 | 7.95 | 11.13 | 46.81 |
| 99106 | 27.00 | 33.53 | 7.95 | 11.13 | 46.81 | ||
| 99108 | 27.61 | 27.71 | 27.66 | 35.71 | 7.95 | 11.13 | 15.88 |
| 99866 | 27.94 | 28.04 | 27.99 | 34.93 | 9.53 | 12.70 | 46.81 |
| 99111 | 27.99 | ||||||
| 99816 | 28.52 | 28.63 | 28.58 | 38.10 | 7.95 | 11.13 | 17.48 |
| 99112 | 28.58 | 38.10 | 7.95 | 11.13 | 17.48 | ||
| 99116 | 28.58 | 38.10 | 9.53 | 12.70 | 17.48 | ||
| 99865 | 29.31 | 29.41 | 29.36 | 34.29 | 9.30 | 12.70 | 17.48 |
| 99120 | 29.36 | 34.29 | 9.30 | 12.70 | 17.48 | ||
| 99122 | 29.79 | 29.92 | 29.85 | 35.56 | 7.95 | 11.13 | 17.48 |
| 99114 | 29.95 | 30.07 | 30.00 | 35.56 | 8.00 | 11.00 | 17.48 |
| 99118 | 30.10 | 30.23 | 30.18 | 35.56 | 7.95 | 11.13 | 17.48 |
| 99123 | 30.89 | 31.04 | 30.96 | 39.70 | 7.95 | 11.00 | 15.88 |
| 99141 | 31.42 | 31.57 | 31.50 | 39.12 | 8.00 | 11.13 | 17.48 |
| 99817 | 31.67 | 31.83 | 31.75 | 38.10 | 7.95 | 11.13 | 17.48 |
| 99125 | 31.75 | 38.10 | 7.95 | 11.13 | 17.48 | 17.48 | |
| 99128 | 31.93 | 32.08 | 32.00 | 38.10 | 8.00 | 11.13 | 17.48 |
| 99121 | 32.94 | 33.05 | 32.99 | 40.49 | 15.01 | 18.01 | 25.40 |
| 99129 | 33.22 | 33.38 | 33.35 | 40.64 | 6.35 | 9.53 | 20.65 |
| 99818 | 33.27 | 33.43 | 33.35 | 40.49 | 12.70 | 15.88 | 20.65 |
| 99131 | 33.35 | 40.49 | 12.70 | 15.88 | 20.65 | ||
| 99134 | 33.86 | 34.01 | 34.01 | 41.28 | 12.70 | 15.88 | 20.65 |
| 99133 | 34.82 | 34.98 | 34.93 | 41.61 | 7.95 | 11.13 | 20.65 |
| 99819 | 34.93 | 41.61 | 12.70 | 15.88 | 20.65 | ||
| 99138 | 34.93 | 41.61 | 12.70 | 15.88 | 20.65 | ||
| 99820 | 34.93 | 35.08 | 34.93 | 41.61 | 13.00 | 16.00 | 20.65 |
| 99139 | 34.93 | 41.61 | 13.00 | 16.00 | 20.65 | ||
| 99146 | 35.84 | 35.99 | 35.99 | 45.24 | 13.00 | 16.99 | 24.99 |
| 99821 | 36.37 | 36.53 | 36.53 | 45.24 | 14.30 | 17.48 | 25.81 |
| 99143 | 36.53 | 45.24 | 14.30 | 17.48 | 25.81 | ||
| 99144 | 36.45 | 36.60 | 36.53 | 45.24 | 9.53 | 12.70 | 25.81 |
| 99147 | 37.85 | 38.00 | 38.00 | 45.24 | 13.00 | 16.99 | 24.99 |
| 99823 | 38.02 | 38.18 | 38.10 | 45.24 | 9.53 | 12.70 | 25.81 |
| 99150 | 38.10 | 45.24 | 9.53 | 12.70 | 25.81 | ||
| 99822 | 38.10 | 45.24 | 14.30 | 17.48 | 25.81 | ||
| 99149 | 38.10 | 45.24 | 14.30 | 17.48 | 25.81 | ||
| 99152 | 38.61 | 38.76 | 38.68 | 47.22 | 11.13 | 14.30 | 25.81 |
| 99155 | 39.34 | 39.50 | 39.42 | 47.22 | 11.13 | 14.30 | 25.81 |
| 99824 | 39.60 | 39.75 | 39.67 | 47.22 | 14.30 | 17.48 | 25.81 |
| 99156 | 39.67 | 47.22 | 14.30 | 17.48 | 25.81 | ||
| 99159 | 39.78 | 39.93 | 39.85 | 47.22 | 15.88 | 19.05 | 25.81 |
| 99153 | 39.85 | 40.01 | 40.01 | 46.99 | 9.91 | 12.93 | 25.40 |
| 99825 | 39.93 | 40.08 | 40.08 | 46.99 | 13.00 | 16.00 | 25.98 |
| 99157 | 40.08 | 46.99 | 13.00 | 16.00 | 25.98 | ||
| 99160 | 40.69 | 40.84 | 40.77 | 49.23 | 12.70 | 16.28 | 25.40 |
| 99163 | 40.84 | 41.00 | 41.00 | 49.23 | 12.70 | 15.88 | 25.81 |
| 99161 | 41.20 | 41.35 | 41.28 | 47.63 | 7.95 | 11.13 | 25.81 |
| 99826 | 41.28 | 47.63 | 14.30 | 17.48 | 20.65 | ||
| 99162 | 41.28 | 47.63 | 14.30 | 17.48 | 20.65 | ||
| 99166 | 41.83 | 42.01 | 41.91 | 53.01 | 11.30 | 14.50 | 21.49 |
| 99169 | 41.91 | 53.01 | 14.30 | 17.50 | 21.01 | ||
| 99873 | 42.01 | 53.01 | 14.30 | 17.50 | 21.01 | ||
| 99165 | 41.99 | 42.14 | 42.06 | 53.01 | 13.97 | 17.50 | 21.01 |
| 99168 | 42.77 | 42.93 | 42.88 | 48.41 | 14.30 | 17.48 | 22.23 |
| 99167 | 42.80 | 42.95 | 42.88 | 48.41 | 7.95 | 11.13 | 22.23 |
| 99182 | 42.85 | 43.00 | 43.00 | 48.41 | 12.70 | 15.88 | 21.44 |
| 99171 | 43.56 | 43.71 | 43.66 | 51.59 | 14.30 | 17.48 | 20.65 |
| 99170 | 44.09 | 44.25 | 44.17 | 52.40 | 9.53 | 12.70 | 20.65 |
| 99172 | 44.37 | 44.53 | 44.45 | 52.20 | 9.53 | 12.70 | 20.65 |
| 99180 | 44.45 | 52.40 | 13.49 | 15.88 | 22.30 | ||
| 99827 | 44.45 | 52.40 | 14.30 | 17.48 | 20.65 | ||
| 99174 | 44.45 | 52.40 | 14.30 | 17.48 | 20.65 | ||
| 99828 | 44.45 | 52.40 | 19.05 | 22.23 | 20.65 | ||
| 99175 | 44.45 | 52.40 | 19.05 | 22.23 | 20.65 | ||
| 99829 | 44.73 | 44.88 | 44.86 | 52.40 | 14.30 | 17.48 | 20.65 |
| 99176 | 44.86 | 52.40 | 14.30 | 17.48 | 20.65 | ||
| 99830 | 44.93 | 45.09 | 45.01 | 53.01 | 14.00 | 16.99 | 20.62 |
| 99177 | 45.01 | 53.01 | 14.00 | 16.99 | 20.62 | ||
| 99179 | 45.16 | 45.31 | 45.24 | 53.98 | 16.94 | 20.32 | 26.97 |
| 99831 | 45.95 | 46.10 | 46.05 | 53.09 | 14.30 | 17.48 | 25.40 |
| 99181 | 46.05 | 53.09 | 14.30 | 17.48 | 25.40 | ||
| 99185 | 47.17 | 47.32 | 47.22 | 54.76 | 14.30 | 17.48 | 25.40 |
| 99186 | 47.40 | 47.55 | 47.45 | 55.58 | 22.58 | 26.04 | 25.40 |
| 99190 | 47.55 | 47.70 | 47.63 | 55.96 | 4.45 | 7.49 | 18.90 |
| 99188 | 47.63 | 55.96 | 7.49 | 10.54 | 18.90 | ||
| 99184 | 47.63 | 55.96 | 9.53 | 13.11 | 26.67 | ||
| 99832 | 47.63 | 55.96 | 14.30 | 17.48 | 25.40 | ||
| 99187 | 47.63 | 55.96 | 14.30 | 17.48 | 25.40 | ||
| 99189 | 47.93 | 48.08 | 48.03 | 56.01 | 14.00 | 16.97 | 24.99 |
| 99192 | 48.49 | 48.64 | 48.56 | 56.36 | 9.53 | 12.70 | 25.40 |
| 99833 | 49.12 | 49.28 | 49.23 | 56.36 | 14.30 | 17.48 | 25.40 |
| 99193 | 49.23 | 56.36 | 14.30 | 17.48 | 25.40 | ||
| 99052 | 49.91 | 50.06 | 50.01 | 56.49 | 14.00 | 16.97 | 34.29 |
| 99196 | 50.01 | 57.00 | 14.00 | 16.97 | 24.99 | ||
| 99198 | 50.22 | 50.37 | 50.29 | 58.75 | 14.30 | 17.88 | 26.67 |
| 99834 | 50.72 | 50.88 | 50.80 | 61.11 | 14.30 | 17.48 | 25.55 |
| 99199 | 50.80 | 61.11 | 14.30 | 17.48 | 25.40 | ||
| 99835 | 50.80 | 61.11 | 22.23 | 25.40 | 25.40 | ||
| 99200 | 50.80 | 61.11 | 22.23 | 25.40 | 25.40 | ||
| 99878 | 51.82 | 51.99 | 51.99 | 62.71 | 12.70 | 15.88 | 34.52 |
| 99205 | 52.25 | 52.40 | 52.40 | 62.71 | 19.84 | 23.83 | 34.93 |
| 99210 | 53.92 | 54.05 | 53.98 | 61.52 | 12.70 | 19.05 | 32.54 |
| 99836 | 53.95 | 54.10 | 53.98 | 61.52 | 19.84 | 23.83 | 34.93 |
| 99212 | 53.98 | 61.52 | 19.84 | 23.83 | 34.93 | ||
| 99863 | 54.91 | 55.07 | 54.99 | 62.00 | 19.99 | 22.99 | 31.75 |
| 99215 | 54.99 | 62.00 | 19.99 | 22.99 | 31.75 | ||
| 99218 | 55.52 | 55.68 | 55.58 | 63.50 | 19.84 | 23.83 | 33.35 |
| 99220 | 55.83 | 56.01 | 56.01 | 64.29 | 12.70 | 15.88 | 33.35 |
| 99224 | 56.01 | 64.29 | 19.79 | 23.77 | 80.01 | ||
| 99861 | 56.57 | 56.72 | 56.64 | 64.29 | 12.70 | 15.88 | 33.35 |
| 99229 | 56.64 | 64.29 | 12.70 | 15.88 | 33.35 | ||
| 99230 | 56.64 | 64.29 | 19.84 | 23.01 | 31.75 | ||
| 99226 | 56.82 | 56.97 | 56.90 | 65.10 | 19.41 | 22.86 | 31.75 |
| 99838 | 57.12 | 57.28 | 57.15 | 64.29 | 7.95 | 11.13 | 33.35 |
| 99227 | 57.15 | 64.29 | 7.95 | 11.13 | 33.35 | ||
| 99837 | 57.15 | 64.29 | 19.84 | 23.83 | 33.35 | ||
| 99225 | 57.15 | 64.29 | 19.84 | 23.83 | 33.35 | ||
| 99219 | 57.91 | 58.06 | 57.99 | 65.99 | 19.99 | 23.83 | 34.93 |
| 99231 | 58.65 | 58.80 | 58.75 | 68.28 | 19.84 | 23.83 | 34.93 |
| 99233 | 59.11 | 59.26 | 59.13 | 69.85 | 19.05 | 22.23 | 38.10 |
| 99241 | 59.92 | 60.07 | 59.99 | 70.74 | 9.40 | 11.43 | 37.36 |
| 99869 | 59.99 | 70.74 | 19.99 | 22.99 | 34.93 | ||
| 99235 | 59.99 | 70.74 | 19.99 | 22.99 | 34.93 | ||
| 99238 | 60.25 | 60.40 | 60.33 | 69.85 | 15.09 | 19.05 | 34.93 |
| 99240 | 60.30 | 60.45 | 60.33 | 69.85 | 13.36 | 17.35 | 34.93 |
| 99839 | 60.33 | 69.85 | 19.84 | 23.83 | 34.93 | ||
| 99237 | 60.33 | 69.85 | 19.84 | 23.83 | 34.93 | ||
| 99243 | 61.82 | 62.00 | 61.93 | 71.83 | 19.84 | 23.83 | 35.38 |
| 99244 | 62.00 | 71.83 | 12.70 | 15.88 | 36.20 | ||
| 99242 | 61.85 | 62.00 | 61.93 | 71.83 | 12.70 | 15.88 | 36.20 |
| 99249 | 63.22 | 63.37 | 63.30 | 73.03 | 19.84 | 23.83 | 35.38 |
| 99253 | 63.42 | 63.58 | 63.50 | 71.63 | 14.10 | 16.51 | 22.61 |
| 99248 | 63.50 | 63.65 | 63.50 | 71.83 | 12.70 | 16.66 | 35.38 |
| 99840 | 63.50 | 71.63 | 19.84 | 23.83 | 34.93 | ||
| 99250 | 63.50 | 71.63 | 19.84 | 23.83 | 34.93 | ||
| 99251 | 63.75 | 63.91 | 63.91 | 71.83 | 19.84 | 23.01 | 36.53 |
| 99841 | 64.92 | 65.07 | 65.00 | 72.39 | 19.99 | 22.99 | 34.93 |
| 99254 | 65.00 | 72.39 | 19.99 | 22.99 | 34.93 | ||
| 99256 | 65.02 | 65.18 | 65.10 | 73.43 | 19.84 | 23.83 | 34.93 |
| 99259 | 65.91 | 66.07 | 65.99 | 75.95 | 19.84 | 23.83 | 31.75 |
| 99261 | 66.50 | 66.65 | 66.57 | 77.39 | 19.84 | 23.83 | 34.93 |
| 99264 | 66.57 | 66.73 | 66.68 | 77.39 | 19.84 | 23.01 | 34.93 |
| 99260 | 66.60 | 66.75 | 66.68 | 77.39 | 12.70 | 15.88 | 34.93 |
| 99842 | 66.68 | 66.83 | 66.68 | 77.39 | 19.84 | 23.83 | 34.93 |
| 99262 | 66.68 | 77.39 | 19.84 | 23.83 | 34.93 | ||
| 99266 | 67.82 | 68.00 | 68.00 | 79.38 | 19.05 | 22.23 | 42.88 |
| 99268 | 69.27 | 69.42 | 69.34 | 79.38 | 19.84 | 23.01 | 33.35 |
| 99273 | 69.60 | 69.75 | 69.67 | 77.85 | 19.84 | 23.83 | 31.75 |
| 99843 | 69.72 | 69.88 | 69.85 | 79.38 | 19.84 | 23.83 | 31.75 |
| 99274 | 69.85 | 79.38 | 19.84 | 23.83 | 31.75 | ||
| 99267 | 69.77 | 69.93 | 69.85 | 78.11 | 36.53 | 41.28 | 41.28 |
| 99272 | 69.85 | 70.00 | 69.85 | 79.38 | 10.31 | 14.30 | 31.75 |
| 99844 | 69.85 | 79.38 | 19.84 | 23.83 | 31.75 | ||
| 99275 | 69.85 | 79.38 | 19.84 | 23.83 | 31.75 | ||
| 99269 | 69.85 | 79.38 | 28.58 | 31.75 | 33.32 | ||
| 99276 | 69.93 | 70.08 | 70.00 | 79.38 | 19.99 | 24.00 | 31.75 |
| 99281 | 71.35 | 71.50 | 71.45 | 80.98 | 15.09 | 17.48 | 31.75 |
| 99870 | 71.83 | 72.01 | 72.01 | 81.92 | 19.05 | 22.23 | 34.11 |
| 99284 | 72.01 | 81.92 | 19.05 | 22.23 | 34.11 | ||
| 99845 | 72.09 | 72.24 | 72.09 | 81.92 | 12.70 | 16.66 | 31.75 |
| 99282 | 72.09 | 81.92 | 12.70 | 16.66 | 31.75 | ||
| 99286 | 72.80 | 72.95 | 72.87 | 80.98 | 19.84 | 23.83 | 31.75 |
| 99846 | 72.97 | 73.13 | 73.03 | 81.76 | 19.84 | 23.83 | 31.75 |
| 99287 | 73.03 | 81.76 | 19.84 | 23.83 | 31.75 | ||
| 99290 | 74.60 | 74.75 | 74.63 | 84.94 | 12.70 | 16.28 | 33.81 |
| 99847 | 74.63 | 84.94 | 19.84 | 23.83 | 33.35 | ||
| 99293 | 74.68 | 84.94 | 19.84 | 23.83 | 33.35 | ||
| 99289 | 74.93 | 75.08 | 75.01 | 83.13 | 15.09 | 17.53 | 27.51 |
| 99875 | 75.01 | 83.95 | 22.00 | 26.01 | 33.35 | ||
| 99294 | 75.01 | 83.95 | 22.00 | 26.01 | 33.35 | ||
| 99292 | 75.49 | 75.59 | 75.54 | 82.17 | 20.65 | 25.40 | 31.75 |
| 99291 | 75.95 | 76.10 | 76.02 | 85.32 | 12.29 | 15.88 | 33.81 |
| 99298 | 76.02 | 85.32 | 14.30 | 17.48 | 34.93 | ||
| 99299 | 76.02 | 85.09 | 20.65 | 25.40 | 32.54 | ||
| 99296 | 76.12 | 76.28 | 76.20 | 82.30 | 20.65 | 23.83 | 34.93 |
| 99048 | 76.20 | 76.35 | 76.20 | 84.96 | 15.88 | 20.65 | 32.51 |
| 99848 | 76.20 | 82.17 | 20.65 | 25.40 | 32.54 | ||
| 99300 | 76.20 | 82.17 | 20.65 | 25.40 | 32.54 | ||
| 99301 | 76.40 | 76.56 | 76.48 | 85.22 | 12.70 | 15.88 | 50.80 |
| 99306 | 77.83 | 78.00 | 78.00 | 88.09 | 19.05 | 22.23 | 52.22 |
| 99311 | 79.25 | 79.40 | 79.38 | 89.69 | 17.47 | 20.65 | 50.80 |
| 99849 | 79.38 | 89.69 | 20.65 | 25.40 | 50.80 | ||
| 99312 | 79.38 | 89.69 | 20.65 | 25.40 | 50.80 | ||
| 99053 | 79.35 | 79.55 | 79.38 | 89.54 | 14.00 | 18.01 | 51.59 |
| 99313 | 79.81 | 80.01 | 80.01 | 89.92 | 19.05 | 22.50 | 34.93 |
| 99317 | 79.91 | 80.09 | 80.01 | 89.99 | 11.00 | 15.01 | 34.93 |
| 99315 | 80.01 | 89.99 | 21.01 | 24.00 | 34.93 | ||
| 99328 | 81.92 | 82.07 | 81.99 | 91.06 | 16.76 | 21.54 | 44.45 |
| 99322 | 82.47 | 82.63 | 82.55 | 91.29 | 20.65 | 25.40 | 34.93 |
| 99850 | 82.55 | 82.70 | 82.55 | 90.81 | 15.11 | 18.26 | 34.93 |
| 99324 | 82.55 | 90.81 | 15.11 | 18.26 | 34.93 | ||
| 99326 | 82.55 | 91.06 | 17.48 | 22.23 | 31.75 | ||
| 99851 | 82.55 | 91.06 | 20.65 | 25.40 | 34.93 | ||
| 99325 | 82.55 | 91.06 | 20.65 | 25.40 | 34.93 | ||
| 99331 | 84.00 | 84.15 | 84.07 | 93.68 | 20.65 | 25.40 | 34.93 |
| 99332 | 84.76 | 85.01 | 84.89 | 93.98 | 16.99 | 21.01 | 35.00 |
| 99872 | 84.89 | 93.98 | 21.01 | 24.99 | 35.00 | ||
| 99333 | 84.89 | 93.98 | 21.01 | 24.99 | 35.00 | ||
| 99334 | 84.79 | 85.01 | 85.01 | 90.93 | 10.13 | 12.67 | 36.35 |
| 99338 | 85.67 | 85.83 | 85.73 | 93.68 | 9.53 | 12.70 | 35.81 |
| 99337 | 85.73 | 93.85 | 20.65 | 25.40 | 34.93 | ||
| 99339 | 87.25 | 87.40 | 87.33 | 97.64 | 19.84 | 23.01 | 35.71 |
| 99481 | 87.80 | 88.00 | 88.00 | 95.28 | 29.21 | 34.27 | 42.50 |
| 99340 | 88.32 | 88.47 | 88.39 | 97.41 | 19.84 | 23.01 | 35.71 |
| 99346 | 88.82 | 88.98 | 88.90 | 97.64 | 15.88 | 20.65 | 34.21 |
| 99347 | 88.90 | 89.05 | 88.90 | 97.16 | 7.95 | 12.70 | 34.21 |
| 99852 | 88.90 | 97.64 | 20.65 | 25.40 | 34.21 | ||
| 99350 | 88.90 | 97.64 | 20.65 | 25.40 | 34.21 | ||
| 99349 | 88.93 | 89.08 | 89.00 | 97.64 | 15.88 | 20.65 | 34.24 |
| 99352 | 89.92 | 90.07 | 89.99 | 101.60 | 11.13 | 13.67 | 46.05 |
| 99353 | 89.99 | 101.60 | 13.36 | 16.94 | 44.45 | ||
| 99351 | 89.99 | 101.60 | 18.03 | 23.01 | 46.05 | ||
| 99354 | 89.99 | 101.60 | 23.01 | 27.99 | 44.45 | ||
| 99356 | 90.42 | 90.58 | 90.50 | 99.06 | 20.65 | 25.40 | 44.45 |
| 99360 | 91.90 | 92.05 | 91.97 | 102.39 | 20.65 | 25.40 | 44.45 |
| 99363 | 92.02 | 92.18 | 92.08 | 102.24 | 12.70 | 15.88 | 44.45 |
| 99362 | 92.08 | 102.39 | 20.65 | 25.40 | 44.45 | ||
| 99368 | 93.57 | 93.73 | 93.68 | 102.39 | 7.95 | 11.13 | 22.23 |
| 99365 | 93.60 | 93.75 | 93.68 | 102.24 | 20.65 | 23.83 | 45.72 |
| 99359 | 94.67 | 94.82 | 94.74 | 102.01 | 11.91 | 15.09 | 45.72 |
| 99366 | 94.74 | 102.24 | 19.84 | 23.01 | 45.72 | ||
| 99369 | 94.92 | 95.07 | 95.00 | 102.24 | 21.01 | 24.00 | 45.72 |
| 99374 | 95.00 | 95.15 | 95.07 | 102.39 | 8.74 | 12.70 | 45.72 |
| 99364 | 95.07 | 102.49 | 11.91 | 15.09 | 45.72 | ||
| 99376 | 95.15 | 95.30 | 95.22 | 102.24 | 14.30 | 17.48 | 45.72 |
| 99853 | 95.25 | 95.40 | 95.25 | 102.11 | 17.48 | 22.23 | 45.72 |
| 99367 | 95.33 | 102.24 | 8.74 | 12.70 | 45.72 | ||
| 99372 | 95.33 | 102.11 | 17.48 | 22.23 | 45.72 | ||
| 99386 | 98.25 | 98.40 | 98.32 | 106.30 | 20.65 | 25.40 | 47.63 |
| 99387 | 98.37 | 98.53 | 98.43 | 107.16 | 20.65 | 25.40 | 47.63 |
| 99854 | 99.95 | 100.10 | 100.03 | 109.55 | 20.65 | 25.40 | 52.07 |
| 99393 | 100.03 | 109.55 | 20.65 | 25.40 | 52.07 | ||
| 99401 | 101.55 | 101.75 | 101.60 | 111.13 | 12.70 | 15.88 | 52.48 |
| 99395 | 101.60 | 111.13 | 15.24 | 18.42 | 52.07 | ||
| 99400 | 101.60 | 111.13 | 16.51 | 19.69 | 34.93 | ||
| 99855 | 101.60 | 111.13 | 20.65 | 25.40 | 52.07 | ||
| 99399 | 101.60 | 111.13 | 20.65 | 25.40 | 52.07 | ||
| 99409 | 103.89 | 104.09 | 103.99 | 112.73 | 19.99 | 24.00 | 35.99 |
| 99412 | 104.70 | 104.90 | 104.78 | 113.54 | 20.65 | 25.40 | 34.93 |
| 99413 | 104.90 | 105.11 | 105.00 | 113.54 | 19.99 | 23.19 | 35.00 |
| 99418 | 106.25 | 106.45 | 106.38 | 114.30 | 20.65 | 25.40 | 34.93 |
| 99423 | 107.34 | 107.54 | 107.54 | 117.09 | 19.84 | 23.01 | 36.53 |
| 99424 | 107.90 | 108.10 | 107.95 | 117.09 | 20.65 | 25.40 | 36.53 |
| 99434 | 109.78 | 110.01 | 110.01 | 124.99 | 11.38 | 14.96 | 32.94 |
| 99435 | 109.91 | 110.11 | 109.93 | 124.99 | 12.93 | 16.51 | 31.75 |
| 99437 | 111.00 | 111.20 | 111.13 | 120.65 | 20.65 | 25.40 | 41.91 |
| 99438 | 111.79 | 111.99 | 111.99 | 120.65 | 19.05 | 22.50 | 33.02 |
| 99439 | 112.62 | 112.83 | 112.73 | 122.25 | 25.40 | 29.01 | 33.35 |
| 99856 | 114.20 | 114.40 | 114.30 | 123.19 | 20.65 | 25.40 | 31.75 |
| 99450 | 114.30 | 124.46 | 20.65 | 25.40 | 31.75 | ||
| 99452 | 114.88 | 115.09 | 115.01 | 127.00 | 20.65 | 23.83 | 31.75 |
| 99465 | 117.37 | 117.58 | 117.48 | 127.00 | 11.13 | 15.88 | 34.93 |
| 99463 | 117.48 | 128.60 | 25.40 | 31.75 | 34.93 | ||
| 99468 | 119.00 | 119.20 | 119.08 | 128.60 | 20.65 | 25.40 | 34.93 |
| 99471 | 119.89 | 120.09 | 119.99 | 129.79 | 8.00 | 11.00 | 33.60 |
| 99473 | 119.99 | 129.79 | 19.99 | 24.99 | 32.00 | ||
| 99475 | 120.55 | 120.75 | 120.65 | 127.00 | 12.70 | 19.05 | 38.10 |
| 99472 | 121.89 | 122.10 | 122.00 | 131.50 | 19.99 | 24.00 | 32.00 |
| 99484 | 122.91 | 123.11 | 123.01 | 132.82 | 19.99 | 24.99 | 31.60 |
| 99487 | 123.72 | 123.93 | 123.83 | 133.35 | 15.88 | 19.05 | 36.53 |
| 99490 | 124.89 | 125.10 | 124.99 | 137.16 | 10.01 | 14.00 | 36.53 |
| 99492 | 124.99 | 137.16 | 26.01 | 32.00 | 36.53 | ||
| 99501 | 126.95 | 127.15 | 127.00 | 137.16 | 13.72 | 17.30 | 36.53 |
| 99857 | 127.00 | 137.16 | 17.48 | 22.23 | 36.53 | ||
| 99498 | 127.00 | 137.16 | 17.48 | 22.23 | 36.53 | ||
| 99858 | 127.00 | 136.91 | 20.65 | 25.40 | 36.53 | ||
| 99499 | 127.00 | 136.91 | 20.65 | 25.40 | 36.53 | ||
| 99482 | 127.80 | 128.00 | 128.00 | 135.26 | 29.21 | 34.27 | 40.30 |
| 99494 | 129.79 | 130.00 | 129.90 | 139.52 | 19.05 | 23.83 | 30.00 |
| 99874 | 129.97 | 130.18 | 130.00 | 139.52 | 22.00 | 25.30 | 32.51 |
| 99491 | 130.18 | 139.52 | 22.00 | 25.30 | 32.51 | ||
| 99513 | 130.05 | 130.25 | 130.18 | 139.70 | 20.65 | 25.40 | 31.75 |
| 99525 | 133.25 | 133.45 | 133.35 | 141.22 | 20.65 | 25.40 | 31.75 |
| 99533 | 134.80 | 135.00 | 134.90 | 145.67 | 20.50 | 25.40 | 31.75 |
| 99537 | 136.42 | 136.63 | 136.53 | 149.23 | 20.65 | 25.40 | 31.75 |
| 99548 | 138.02 | 138.23 | 138.13 | 146.05 | 38.10 | 42.88 | 47.63 |
| 99547 | 138.99 | 139.19 | 139.09 | 149.86 | 14.30 | 19.05 | 31.34 |
| 99550 | 139.65 | 139.85 | 139.70 | 150.83 | 13.16 | 17.91 | 31.75 |
| 99859 | 139.70 | 150.83 | 20.65 | 25.40 | 31.75 | ||
| 99549 | 139.70 | 150.83 | 20.65 | 25.40 | 31.75 | ||
| 99552 | 139.90 | 140.11 | 140.00 | 151.00 | 20.50 | 25.40 | 31.75 |
| 99560 | 142.77 | 142.98 | 142.88 | 157.18 | 22.23 | 25.40 | 46.02 |
| 99571 | 144.75 | 145.01 | 145.01 | 154.94 | 19.05 | 22.23 | 46.02 |
| 99562 | 145.44 | 145.64 | 145.64 | 154.94 | 14.30 | 19.05 | 49.23 |
| 99575 | 145.95 | 146.15 | 146.05 | 156.97 | 20.65 | 25.40 | 44.45 |
| 99862 | 149.12 | 149.33 | 149.23 | 157.18 | 25.40 | 31.75 | 33.35 |
| 99587 | 149.23 | 157.18 | 25.40 | 31.75 | 33.35 | ||
| 99595 | 149.76 | 150.01 | 149.99 | 159.00 | 26.01 | 30.00 | 32.51 |
| 99596 | 150.72 | 150.93 | 150.83 | 161.93 | 25.40 | 28.58 | 47.63 |
| 99601 | 152.27 | 152.48 | 152.40 | 161.54 | 12.70 | 19.05 | 44.45 |
| 99599 | 152.40 | 161.93 | 25.40 | 31.75 | 44.45 | ||
| 99605 | 153.87 | 154.13 | 154.00 | 161.93 | 26.01 | 30.00 | 32.99 |
| 99606 | 154.74 | 154.99 | 154.86 | 167.01 | 26.01 | 30.00 | 32.99 |
| 99620 | 157.43 | 157.68 | 157.56 | 168.28 | 20.65 | 27.00 | 44.45 |
| 99625 | 158.62 | 158.88 | 158.75 | 168.28 | 26.19 | 31.75 | 44.45 |
| 99630 | 159.74 | 159.99 | 159.99 | 171.45 | 25.40 | 31.75 | 34.93 |
| 99650 | 164.97 | 165.23 | 165.10 | 177.80 | 25.40 | 31.75 | 34.93 |
| 99640 | 169.75 | 170.00 | 169.88 | 182.58 | 31.75 | 38.00 | 44.45 |
| 99675 | 171.32 | 171.58 | 171.45 | 180.98 | 20.65 | 27.00 | 44.45 |
| 99687 | 174.75 | 175.01 | 175.01 | 186.99 | 27.99 | 32.00 | 35.00 |
| 99864 | 177.67 | 177.93 | 177.80 | 189.87 | 25.40 | 31.75 | 42.88 |
| 99700 | 177.80 | 189.87 | 25.40 | 31.75 | 42.88 | ||
| 99721 | 179.76 | 180.01 | 180.01 | 190.50 | 32.99 | 38.00 | 44.50 |
| 99725 | 184.00 | 184.25 | 184.15 | 197.10 | 31.75 | 38.10 | 55.25 |
| 99726 | 184.73 | 184.99 | 184.86 | 197.10 | 32.00 | 38.00 | 54.99 |
| 99745 | 189.08 | 189.33 | 189.31 | 199.64 | 20.65 | 25.40 | 31.75 |
| 99750 | 190.37 | 190.63 | 190.50 | 200.03 | 20.65 | 25.40 | 31.75 |
| 99775 | 196.72 | 196.98 | 196.85 | 210.06 | 25.40 | 33.35 | 47.63 |
| 99787 | 199.87 | 200.13 | 200.03 | 212.73 | 34.52 | 38.10 | 44.45 |
| 99799 | 201.50 | 201.75 | 201.63 | 212.73 | 25.40 | 31.75 | 44.45 |
| 99800 | 203.07 | 203.33 | 203.20 | 212.73 | 25.40 | 31.75 | 44.45 |
