T5 26 MM Kalınlık AL

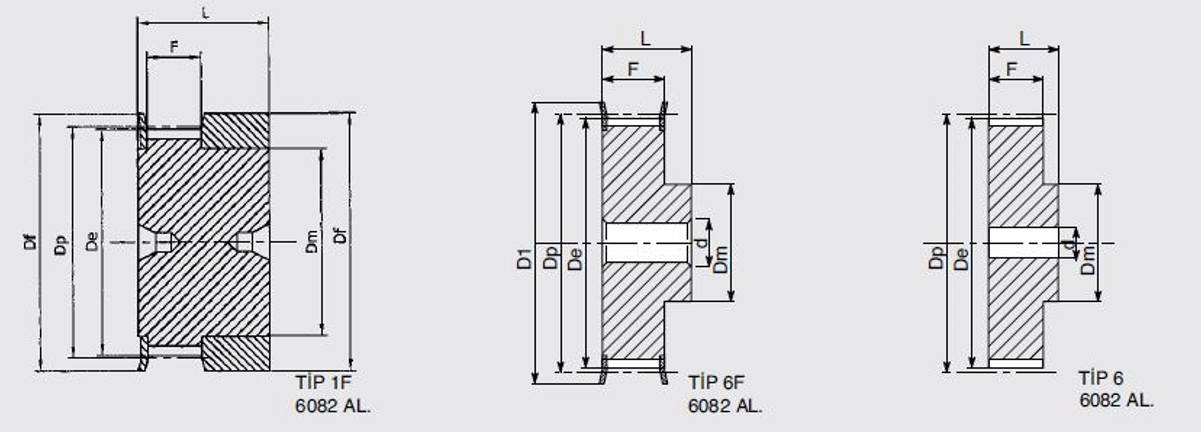

Ürün Kodu	Tip	Diş Sayısı	Dp	De	Df	Dm	F	L	Pilot Delik	Kg
Ürün Kodu	Tip	Diş Sayısı	Dp	De	Df	Dm	F	L	Pilot Delik	Kg
T 10-T5-25F-AL	6F	10	16.05	15.05	20.00	8	30	36	4	0.023
T 12-T5-25F-AL	6F	12	19.25	18.25	23.00	11	30	36	4	0.031
T 14-T5-25F-AL	6F	14	22.45	21.45	25.00	13	30	36	4	0.037
T 15-T5-25F-AL	6F	15	24.05	23.05	28.00	16	30	36	6	0.041
T 16-T5-25F-AL	6F	16	25.06	24.60	32.00	18	30	36	6	0.050
T 18-T5-25F-AL	6F	18	28.80	27.80	32.00	20	30	36	6	0.061
T 19-T5-25F-AL	6F	19	30.40	29.40	36.00	22	30	36	6	0.070
T 20-T5-25F-AL	6F	20	32.00	31.00	36.00	23	30	36	6	0.076
T 22-T5-25F-AL	6F	22	35.15	34.15	38.00	24	30	36	6	0.092
T 24-T5-25F-AL	6F	24	38.40	37.40	42.00	26	30	36	8	0.109
T 25-T5-25F-AL	6F	25	39.95	38.95	44.00	26	30	36	8	0.116
T 26-T5-25F-AL	6F	26	41.60	40.60	44.00	26	30	36	8	0.121
T 27-T5-25F-AL	6F	27	43.20	42.20	48.00	30	30	36	8	0.128
T 28-T5-25F-AL	6F	28	44.75	43.75	48.00	32	30	36	8	0.142
T 30-T5-25F-AL	6F	30	47.95	46.95	51.00	34	30	36	8	0.150
T 32-T5-25F-AL	6F	32	51.10	50.10	54.00	38	30	36	8	0.176
T 36-T5-25F-AL	6F	36	57.45	56.45	64.00	38	30	36	8	0.230
T 40-T5-25F-AL	6F	40	63.85	62.85	66.00	40	30	36	8	0.276
T 42-T5-25F-AL	6F	42	67.00	66.00	70.00	40	30	36	8	0.352
T 44-T5-25-AL	6	44	70.20	69.20	-	45	30	36	8	0.400
T 48-T5-25-AL	6	48	76.55	75.55	-	50	30	36	8	0.614
T 60-T5-25-AL	6	60	95.65	94.65	-	65	30	36	8	0.180
