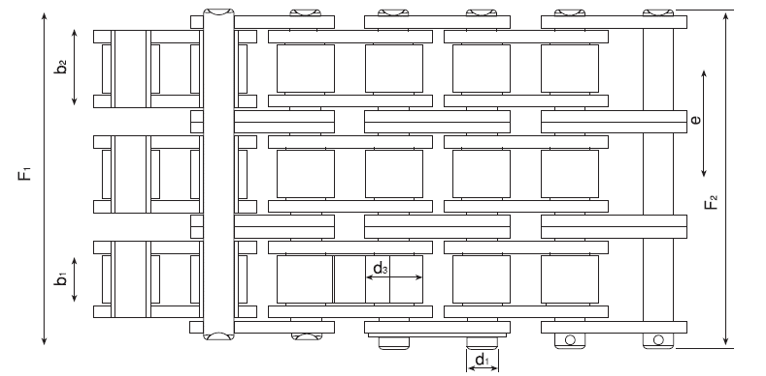

Üç Sıra Standart Zincirler Din8187
| TİP | p (mm) | b1 (mm) | b2 (mm) | d1 (h9) (mm) | d3 (mm) | F1 Min.(mm) | F2 Mak.(mm) | h (mm) | e (mm) | Zincir Çekme Kuvveti | Zincir Kopma Yükü | Zincir Ağırlığı Kg/m |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TİP | p (mm) | b1 (mm) | b2 (mm) | d1 (h9) (mm) | d3 (mm) | F1 Min.(mm) | F2 Mak.(mm) | h (mm) | e (mm) | Zincir Çekme Kuvveti | Zincir Kopma Yükü | Zincir Ağırlığı Kg/m |
| 06B-3 | 9.525 | 5.72 | 8.53 | 3.28 | 6.35 | 34 | 37.3 | 8.26 | 10.24 | 0.83 | 25400 | 1.2 |
| 08B-3 | 12.7 | 7.75 | 11.3 | 4.45 | 8.51 | 44.9 | 48.8 | 11.81 | 13.92 | 1.5 | 45400 | 2 |
| 10B-3 | 15.875 | 9.65 | 13.28 | 5.08 | 10.16 | 52.8 | 56.9 | 14.73 | 16.59 | 2.02 | 68100 | 2.8 |
| 12B-3 | 19.05 | 11.68 | 15.62 | 5.72 | 12.07 | 61.7 | 66.3 | 16.13 | 19.46 | 2.68 | 88500 | 3.8 |
| 16B-3 | 25.4 | 17.02 | 25.45 | 8.28 | 15.88 | 99.9 | 105.3 | 21.08 | 31.88 | 6.32 | 165000 | 8 |
| 20B-3 | 31.75 | 19.56 | 29.01 | 10.19 | 19.05 | 116.1 | 122.2 | 26.42 | 36.45 | 8.86 | 270000 | 11 |
| 24B-3 | 38.1 | 25.4 | 37.92 | 14.63 | 25.4 | 150.2 | 156.8 | 33.4 | 48.36 | 16.64 | 485000 | 21 |
| 28B-3 | 44.45 | 30.99 | 46.58 | 15.9 | 27.94 | 184.3 | 191.7 | 37.08 | 59.56 | 22.21 | 571000 | 25 |
| 32B-3 | 50.8 | 30.99 | 45.57 | 17.81 | 29.21 | 184.5 | 192.4 | 42.29 | 58.55 | 24.34 | 743000 | 32 |
| 40B-3 | 63.5 | 38.1 | 55.75 | 22.89 | 39.37 | 227.2 | 237.4 | 52.96 | 72.29 | 38.28 | 1000000 | 48 |
| 48B-3 | 76.2 | 45.72 | 70.56 | 29.24 | 48.26 | 281.6 | 292.1 | 63.88 | 91.21 | 61.68 | 1600000 | 75 |
| 56B-3 | 88.9 | 53.34 | 81.33 | 34.32 | 53.98 | 330.5 | 340 | 77.85 | 106.6 | 83.73 | 2305000 | 105 |
| 64B-3 | 101.6 | 60.96 | 92.02 | 39.4 | 63.5 | 371.4 | 380 | 90.17 | 119.89 | 108.75 | 3040000 | 180 |
| 72B-3 | 114.3 | 68.58 | 103.81 | 44.48 | 72.39 | 421.3 | 430 | 103.63 | 136.27 | 138.5 | 3925000 | 240 |
